Product Specifications
| Manufacturer Part Number | N4323 |
| Thread Size | #10 |
| Thread Size (Decimal Inch) | 0.190" |
| Thread Size (mm) | 4.83mm |
| Threads per Inch (TPI) | 24 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 2.756" |
| Overall Length (mm) | 70.00mm |
| Thread Length (Decimal Inch) | 0.531" |
| Thread Length (mm) | 13.49mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.194" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Decimal Inch) | 0.152" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.131" |
| Neck Diameter (mm) | 3.33mm |
| Neck Length (Decimal Inch) | 0.906" |
| Neck Length (mm) | 23.01mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.152" |
| Drill Size (mm) | 3.86mm |
| Connection Size (Decimal Inch) | 0.194" x 0.152" |
| Connection Size (mm) | 4.93 x 3.86mm |
| Length / Diameter | 3.0 X D |
| Usable Length (Decimal Inch) | 0.906" |
| Usable Length (mm) | 23.01mm |
| Ring Color | Blue Ring |
| Number of Flutes | 3 |
| Coating | Steam Oxide |
| Material | HSS-PM |
| Blank Standard | DIN/ANSI |

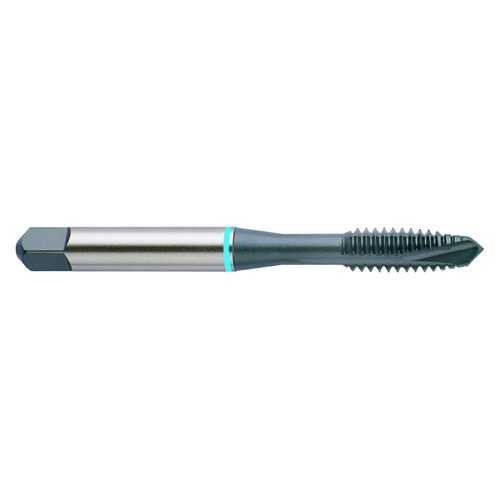

| Product Type | Spiral Flute Tap |
