Product Specifications

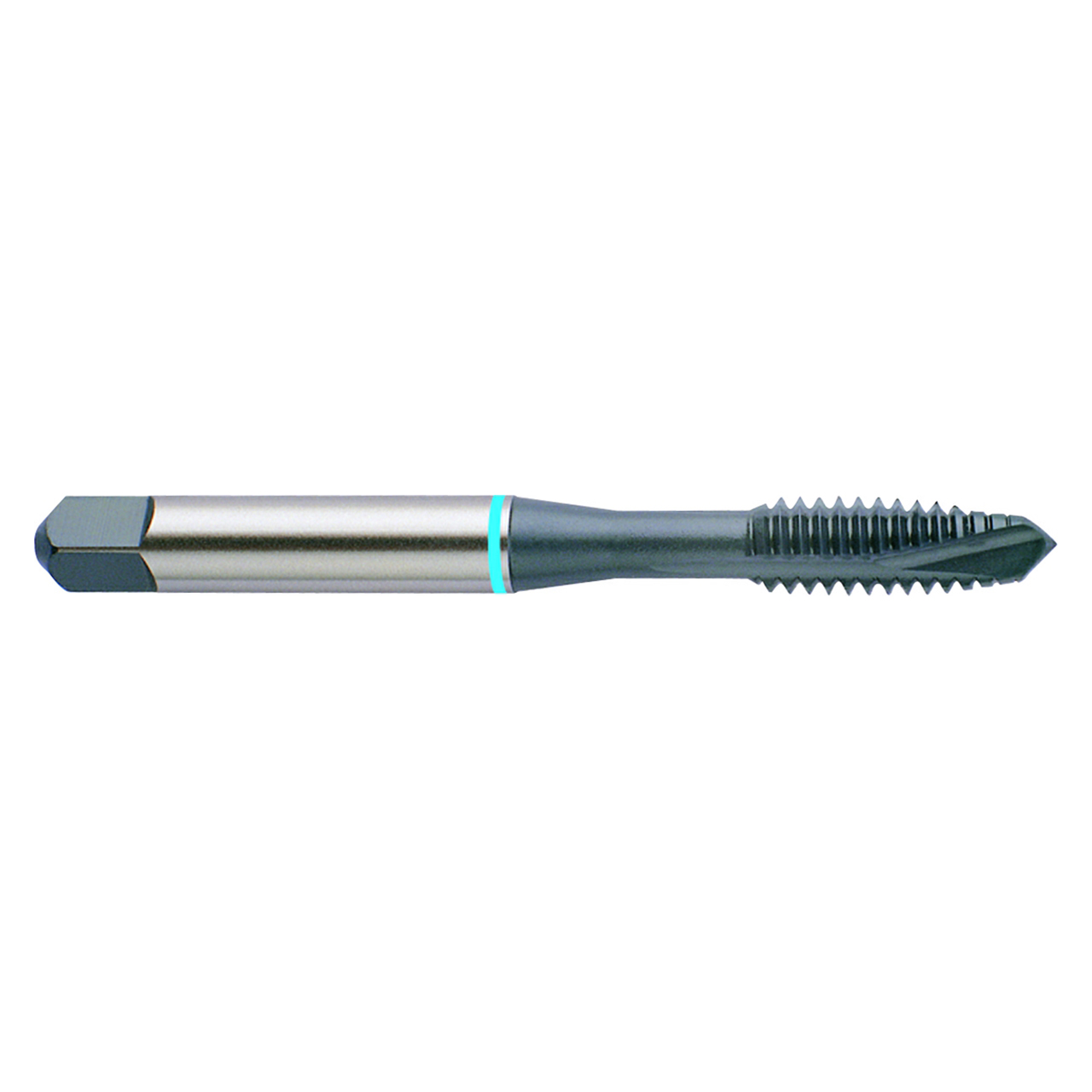

| Manufacturer Part Number | N7616 |
| Thread Size | M16 |
| Thread Size (Decimal Inch) | 0.630" |
| Thread Size (mm) | 16.00mm |
| Pitch (mm) | 1.50mm |
| Thread Series | MF |
| Pitch Limit | D6 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Overall Length (Decimal Inch) | 3.811" |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 1.083" |
| Thread Length (mm) | 27.51mm |
| Square Length (Decimal Inch) | 0.560" |
| Square Length (mm) | 14.22mm |
| Shank Diameter (Decimal Inch) | 0.480" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.360" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (Decimal Inch) | 0.469" |
| Neck Diameter (mm) | 11.91mm |
| Neck Length (Decimal Inch) | 1.811" |
| Neck Length (mm) | 46.00mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.576" |
| Drill Size (mm) | 14.64mm |
| Connection Size (Decimal Inch) | 0.480" x 0.360" |
| Connection Size (mm) | 12.19 x 9.14mm |
| Length / Diameter | 3.0 X D |
| Usable Length (Decimal Inch) | 1.811" |
| Usable Length (mm) | 46.00mm |
| Ring Color | Blue Ring |
| Number of Flutes | 3 |
| Coating | Steam Oxide |
| Material | HSS-PM |
| Blank Standard | 302A |
| Product Type | Spiral Flute Tap |
