| Manufacturer Part Number | P15303 |
| Min. Insert Diameter (Decimal Inch) | 1.4063" |
| Min.-Insert-Diameter-(Inch) | 1-13/32" |
| Min. Insert Diameter (mm) | 35.72mm |
| Max. Insert Diameter (Decimal Inch) | 1.8750" |
| Max. Insert Diameter (Inch) | 1-7/8" |
| Max. Insert Diameter (mm) | 47.63mm |
| Shank Diameter (Decimal Inch) | 1.2500" |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Diameter (mm) | 31.75mm |
| Max Drill Depth (Decimal Inch) | 8.2500" |
| Max Drill Depth (Inch) | 8-1/4" |
| Max Drill Depth (mm) | 209.55mm |
| Flute Length (Decimal Inch) | 9.5000" |
| Flute Length (Inch) | 9-1/2" |
| Flute Length (mm) | 241.30mm |
| Overall Length (Decimal Inch) | 13.5000" |
| Overall Length (Inch) | 13-1/2" |
| Overall Length (mm) | 342.90mm |
| Shank Length (Decimal Inch) | 2.2800" |
| Shank Length (Inch) | 2-9/32" |
| Shank Length (mm) | 57.94mm |
| Reference Length (Decimal Inch) | 9.6900" |
| Reference Length (Decimal Inch) | 9-11/16" |
| Reference Length (Decimal Inch) | 246.06mm |
| Pipe Tap (Inch) | 1/4" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

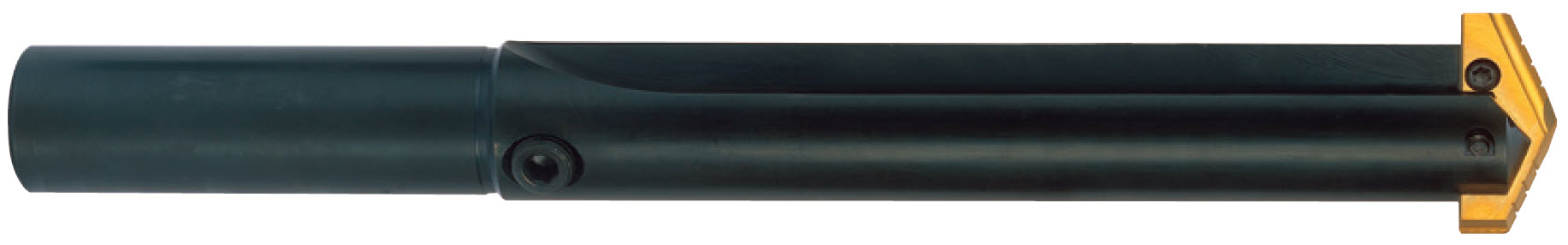

| Product Type | Spade Drill Holder |
