Product Specifications
| # Manufacturer Number | P17404 |
| Min. Insert Diameter (Decimal Inch) | 1.9063" |
| Min.-Insert-Diameter-(Inch) | 1-29/32" |
| Min. Insert Diameter (mm) | 48.42mm |
| Max. Insert Diameter (Decimal Inch) | 2.5625" |
| Max. Insert Diameter (Inch) | 2-9/16" |
| Max. Insert Diameter (mm) | 65.09mm |
| Max Drill Depth (Decimal Inch) | 24.6300" |
| Max Drill Depth (Inch) | 24-5/8" |
| Max Drill Depth (mm) | 625.48mm |
| Flute Length (Decimal Inch) | 26.0000" |
| Flute Length (Inch) | 26" |
| Flute Length (mm) | 660.40mm |
| Overall Length (Decimal Inch) | 30.0000" |
| Overall Length (Inch) | 30" |
| Overall Length (mm) | 762.00mm |
| Reference Length (Decimal Inch) | 26.1900" |
| Reference Length (Decimal Inch) | 26-3/16" |
| Reference Length (Decimal Inch) | 665.16mm |
| Pipe Tap (Inch) | 1/4" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

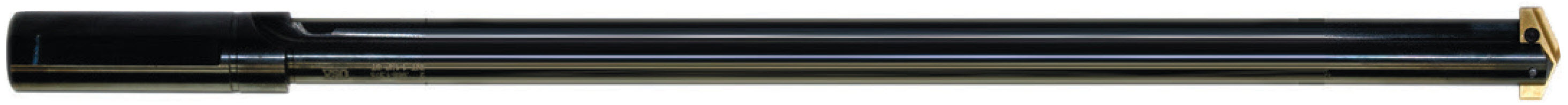

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P17
Minimum Drill Diameter (Decimal Inch):
1.9063";Minimum Drill Diameter (Inch)=1 29/32""
Minimum Drill Diameter (mm):
48.42mm
Maximum Drill Diameter (Decimal Inch):
2.5625";Maximum Drill Diameter (Inch)=2-9/16""
Maximum Drill Diameter (mm):
65.09mm
Overall Length (Inch):
30";Overall Length (Decimal Inch)=30.0000""
Overall Length (mm):
30.0000";Maximum Drill Depth (Inch)=24-5/8""
Maximum Drill Depth (Decimal Inch):
24.6300";Maximum Drill Depth (mm)=625.48mm"
Flute Type:
Straight
Shank Type:
Straight
Material:
Steel
Finish/Coating:
Oxide
