Product Specifications
| # Manufacturer Number | P25303 |
| Min. Insert Diameter (Decimal Inch) | 1.4063" |
| Min.-Insert-Diameter-(Inch) | 1-13/32" |
| Min. Insert Diameter (mm) | 35.72mm |
| Max. Insert Diameter (Decimal Inch) | 1.8750" |
| Max. Insert Diameter (Inch) | 1-7/8" |
| Max. Insert Diameter (mm) | 47.63mm |
| Max Drill Depth (Decimal Inch) | 4.7500" |
| Max Drill Depth (Inch) | 4-3/4" |
| Max Drill Depth (mm) | 120.65mm |
| Flute Length (Decimal Inch) | 6.8100" |
| Flute Length (Inch) | 6 13/16" |
| Flute Length (mm) | 173.04mm |
| Overall Length (Decimal Inch) | 9.5000" |
| Overall Length (Inch) | 9-1/2" |
| Overall Length (mm) | 241.30mm |
| Reference Length (Decimal Inch) | 7.0000" |
| Reference Length (Decimal Inch) | 7" |
| Reference Length (Decimal Inch) | 177.80mm |
| Pipe Tap (Inch) | 1/4" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

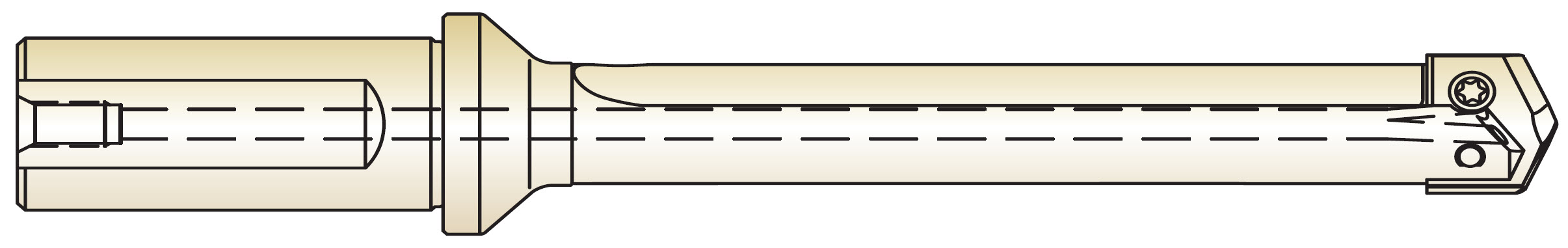

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P25
Minimum Drill Diameter (Decimal Inch):
1.4063";Minimum Drill Diameter (Inch)=1 13/32"""""
Minimum Drill Diameter (mm):
35.72mm
Maximum Drill Diameter (Decimal Inch):
1.8750";Maximum Drill Diameter (Inch)=1-7/8"""""
Maximum Drill Diameter (mm):
47.63mm
Overall Length (Inch):
9-1/2";Overall Length (Decimal Inch)=9.5000"""""
Overall Length (mm):
9.5000";Maximum Drill Depth (Inch)=4-3/4"""""
Maximum Drill Depth (Decimal Inch):
4.7500";Maximum Drill Depth (mm)=120.65mm"""
Flute Type:
Straight
Shank Type:
Flanged
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
