Product Specifications
| # Manufacturer Number | P27253 |
| Min. Insert Diameter (Decimal Inch) | 1.1875" |
| Min.-Insert-Diameter-(Inch) | 1-3/16" |
| Min. Insert Diameter (mm) | 30.16mm |
| Max. Insert Diameter (Decimal Inch) | 1.3750" |
| Max. Insert Diameter (Inch) | 1-3/8" |
| Max. Insert Diameter (mm) | 34.93mm |
| Max Drill Depth (Decimal Inch) | 7.3800" |
| Max Drill Depth (Inch) | 7-3/8" |
| Max Drill Depth (mm) | 187.33mm |
| Flute Length (Decimal Inch) | 9.0600" |
| Flute Length (Inch) | 9-1/16" |
| Flute Length (mm) | 230.19mm |
| Overall Length (Decimal Inch) | 11.3400" |
| Overall Length (Inch) | 11-11/32" |
| Overall Length (mm) | 288.13mm |
| Reference Length (Decimal Inch) | 9.2000" |
| Reference Length (Decimal Inch) | 9-13/64" |
| Reference Length (Decimal Inch) | 233.76mm |
| Pipe Tap (Inch) | 1/4" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

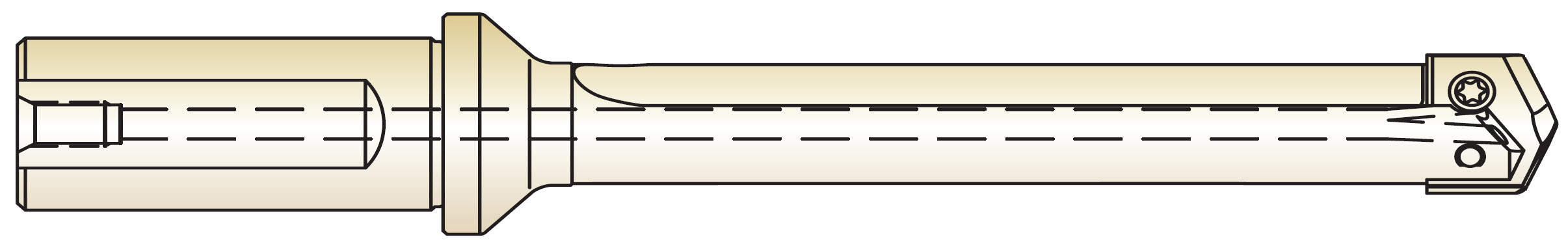

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P27
Minimum Drill Diameter (Decimal Inch):
1.1875";Minimum Drill Diameter (Inch)=1 3/16""
Minimum Drill Diameter (mm):
30.16mm
Maximum Drill Diameter (Decimal Inch):
1.3750";Maximum Drill Diameter (Inch)=1-3/8""
Maximum Drill Diameter (mm):
34.93mm
Overall Length (Inch):
11-11/32";Overall Length (Decimal Inch)=11.3400""
Overall Length (mm):
11.3400";Maximum Drill Depth (Inch)=7-3/8""
Maximum Drill Depth (Decimal Inch):
7.3800";Maximum Drill Depth (mm)=187.33mm"
Flute Type:
Straight
Shank Type:
Flanged
Material:
Steel
Finish/Coating:
Oxide
