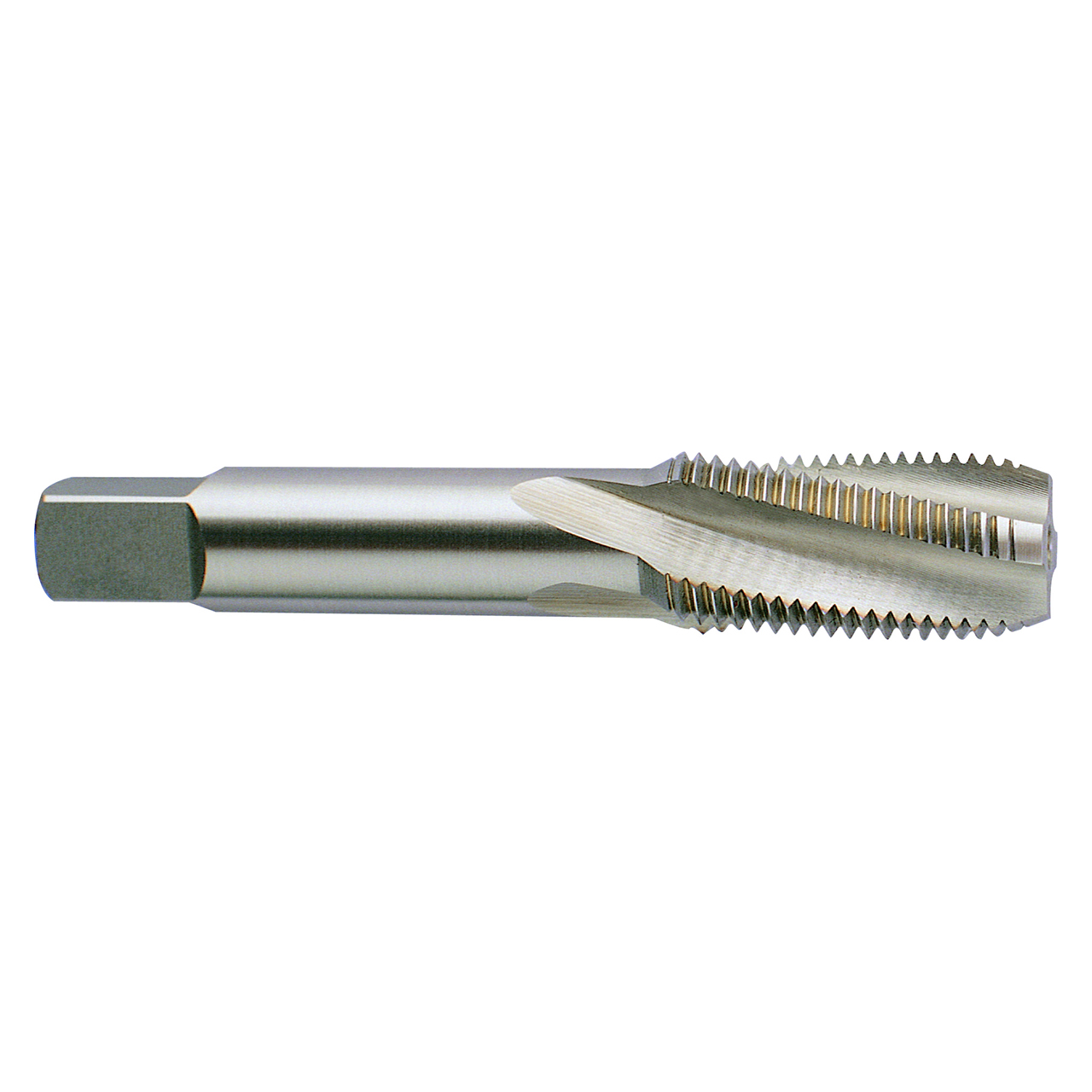

Product Specifications
| EDP Number | R0560 |
| Size | 1/2" |
| Pitch | 14 TPI |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.1300" |
| Overall Length (mm) | 79.50mm |
| Thread Length (Decimal Inch) | 1.3800" |
| Thread Length (mm) | 35.05mm |
| Square Length (Decimal Inch) | 0.6300" |
| Square Length (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6875" |
| Shank Diameter (mm) | 17.46mm |
| Square Size (Decimal Inch) | 0.5150" |
| Square Size (mm) | 13.08mm |
| Drill Size (Decimal Inch) | 0.7031" |
| Drill Size (mm) | 17.86mm |
| Useable Length (Decimal Inch) | 1.3800" |
| Useable Length (mm) | 35.05mm |
| Number of Flutes | 4 |
| Series | R0 |
| Chamfer Length | 2P-3P |
| Thread Series | NPTF |
| Coating | TiN |
| Material | HSSE-V3 |
| Blank Standard | 311 |
| Helix Angle (Degree) | 15 Degree |
| Length/Diameter | 2.5 x D |
| Chamfer Type | Modified Bottoming |
| Tap Type | NPT(F) Taper Pipe Tap |
| Shank Type | Square |
| Trade Name | YG-Pipe Taps |
| Product Type | Spiral Flute Pipe Tap |
