| Manufacturer Part Number | S28221 |
| Diameter (Decimal Inch) | 1.3000" |
| Diameter (Inch) | 1-3/10" |
| Diameter (mm) | 33.00mm |
| Thickness (Decimal Inch) | 0.1890" |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.80mm |
| Insert Height (Decimal Inch) | 0.6410" |
| Insert Height (Inch) | 25/39" |
| Insert Height (mm) | 16.28mm |
| Series | S28 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 2 |
| Grade | (C5)P40 |
| Trade Name | YG Spade Drill (C5) P40 Carbide |
| Application | P |
| Coating | TiAlN |
| Material | Carbide |

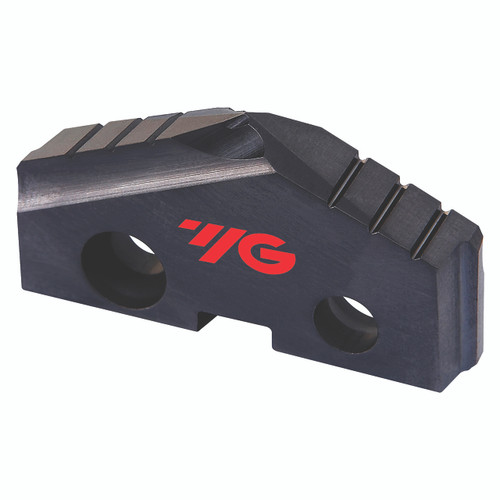

| Product Type | Spade Drill Insert |
