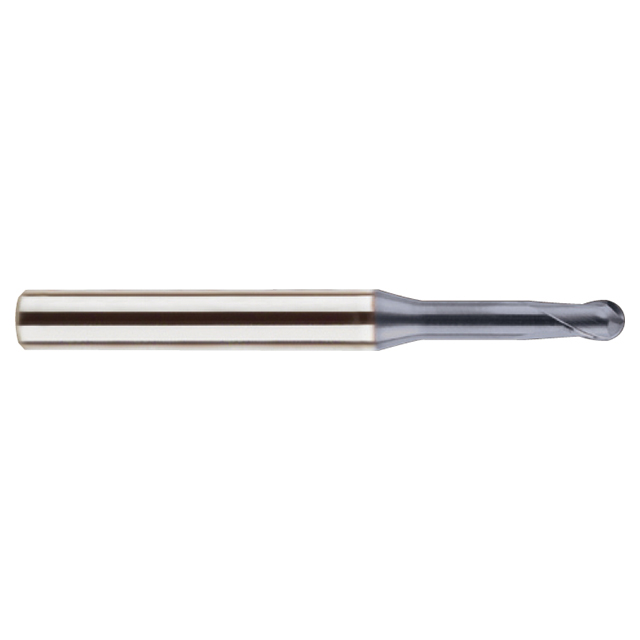

| Manufacturer Part Number | SEM84602530 |
| Diameter (Decimal Inch) | 0.0984" |
| Diameter (Inch) | 6/61" |
| Diameter (mm) | 2.50mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.0984" |
| Length of Cut (Inch) | 6/61" |
| Length of Cut (mm) | 2.50mm |
| Overall Length (Decimal Inch) | 2.7559" |
| Overall Length (Inch) | 2-65/86" |
| Overall Length (mm) | 70.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0492" |
| Ball Nose Radius (Inch) | 3/61" |
| Ball Nose Radius (mm) | 1.25mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Length Type | Long Neck |
| Series | SEM846 |
| Material | Carbide |
| Product Type | Ball Nose End Mill |
