Product Specifications
| EDP Number | SEME36170 |
| Diameter (Decimal Inch) | 0.6693" |
| Diameter (Inch) | 2/3" |
| Diameter (mm) | 17.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.6535" |
| Length of Cut (Inch) | 1 17/26" |
| Length of Cut (mm) | 42.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (mm) | 100.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | Variable |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | SEME36 |
| Material | Carbide |

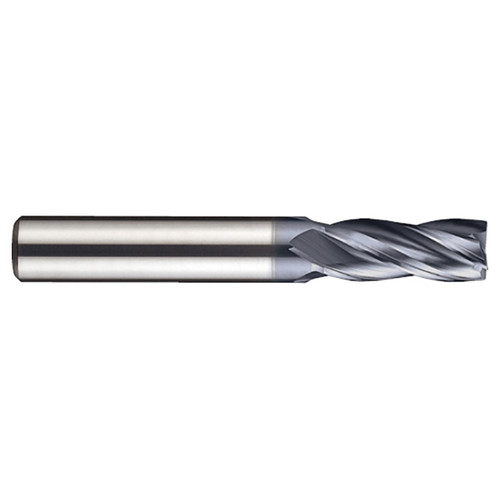

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
YG1
Diameter (Decimal Inch):
0.6693"
Diameter (Inch):
2/3"
Diameter (mm):
17.00mm
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (Inch):
17/27"
Shank Diameter (mm):
16.00mm
Length of Cut (Decimal Inch):
1.6535"
Length of Cut (Inch):
1-17/26"
Length of Cut (mm):
42.00mm
Overall Length (Decimal Inch):
3.9370"
Overall Length (Inch):
3-15/16"
Overall Length (mm):
100.00mm
Shank Style:
Plain
Finish/Coating:
AlCrN
Number of Flutes:
4
Material:
Carbide
Cut Type:
Center Cut
Cutting Direction:
Right
