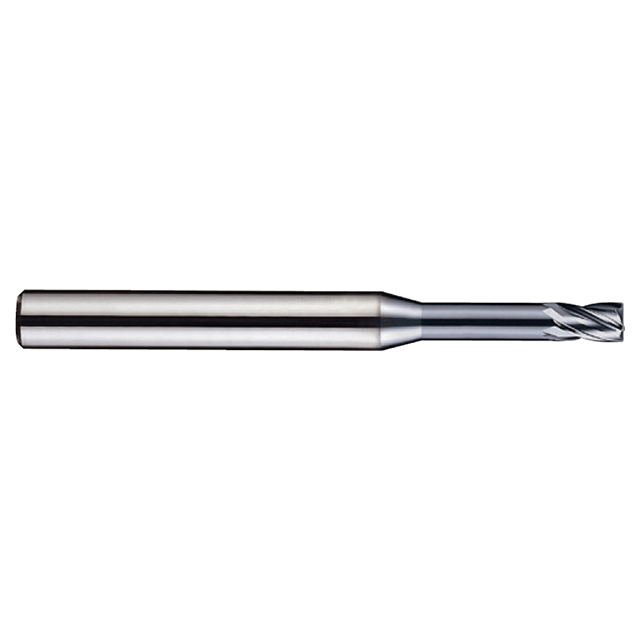

YG1 SEME6408003 | 0.3150" Diameter x 0.3150" Shank x 0.4724" LOC x 2.7559" OAL x 0.0118" Radius 4 Flute AlCrN Coated Carbide Corner Radius with Long Neck End Mill

$69.01
SKU:
25058343
Weight:
0.10 LBS
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberSEME6408003
Diameter (Decimal Inch)0.3150"
Diameter (Inch)23/73"
Diameter (mm)8.00mm
Shank Diameter (Decimal Inch)0.3150"
Shank Diameter (Inch)23/73"
Shank Diameter (mm)8.00mm
Length of Cut (Decimal Inch)0.4724"
Length of Cut (Inch)43/91"
Length of Cut (mm)12.00mm
Overall Length (Decimal Inch)2.7559"
Overall Length (Inch)2-65/86"
Overall Length (mm)70.00mm
Corner Radius (Decimal Inch)0.0118"
Corner Radius (Inch)3/254"
Shank StylePlain
Helix Angle (Degree)Variable
CoatingAlCrN
Number of Flutes4
Corner Radius (mm)0.30mm
Cut TypeCenter Cut
Corner TypeCorner Radius
Length TypeLong Neck
SeriesSEME64
MaterialCarbide
Product TypeCorner Radius End Mill
