Product Specifications
| EDP Number | SEME7108030 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 1.1811" |
| Length of Cut (Inch) | 1 2/11" |
| Length of Cut (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 2.7559" |
| Overall Length (Inch) | 2-65/86" |
| Overall Length (mm) | 70.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | SEME71 |
| Material | Carbide |

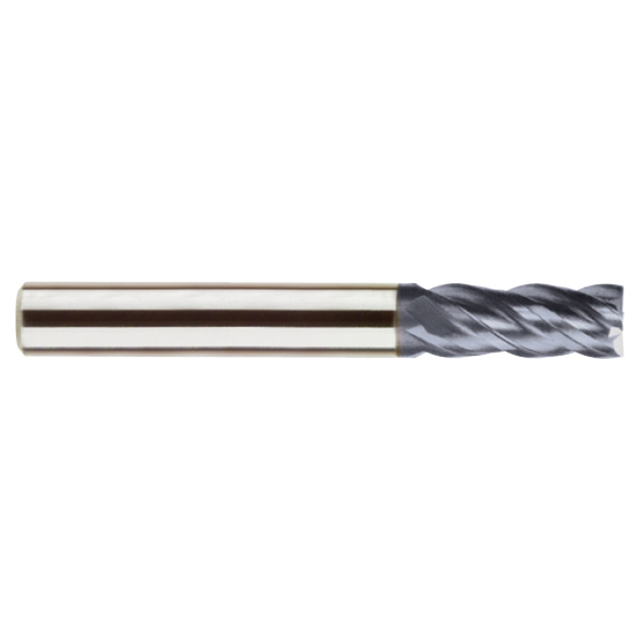

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
4
Length of Cut (Inch):
1-2/11"
Length of Cut (Decimal Inch):
1.1811"
Length of Cut (mm):
30.00mm
Material:
Carbide
Finish/Coating:
AlCrN
Shank Diameter (Inch):
23/73"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Overall Length (Inch):
2-65/86"
Overall Length (Decimal Inch):
2.7559"
Overall Length (mm):
70.00mm
Helix Angle:
30°
