Product Specifications
| Diameter (Decimal Inch) | SI162 |
| Diameter (Decimal Inch) | 0.1463" |
| Diameter (mm) | 3.72mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Thread Length (Decimal Inch) | 0.4130" |
| Thread Length (mm) | 10.49" |
| Square Length (Decimal Inch) | 0.4130" |
| Square Length (mm) | 10.49" |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.0940" |
| Neck Diameter (mm) | 2.39mm |
| Drill Size (Decimal Inch) | 0.1181" |
| Drill Size (mm) | 3.00mm |
| Useable Length (Decimal Inch) | 0.6900" |
| Useable Length (mm) | 17.53mm |
| Length/Diameter | 3.0xD |
| Coolant Through | No |
| Tap Type | SPPT |
| Number Of Flutes | 3 |
| Size | #4 |
| Pitch | 40 TPI |
| Thread Series | UNC |
| Thread Class | 2B |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Hardslick |
| Material | HSSE-V3 |
| Blank Standard | 322 |

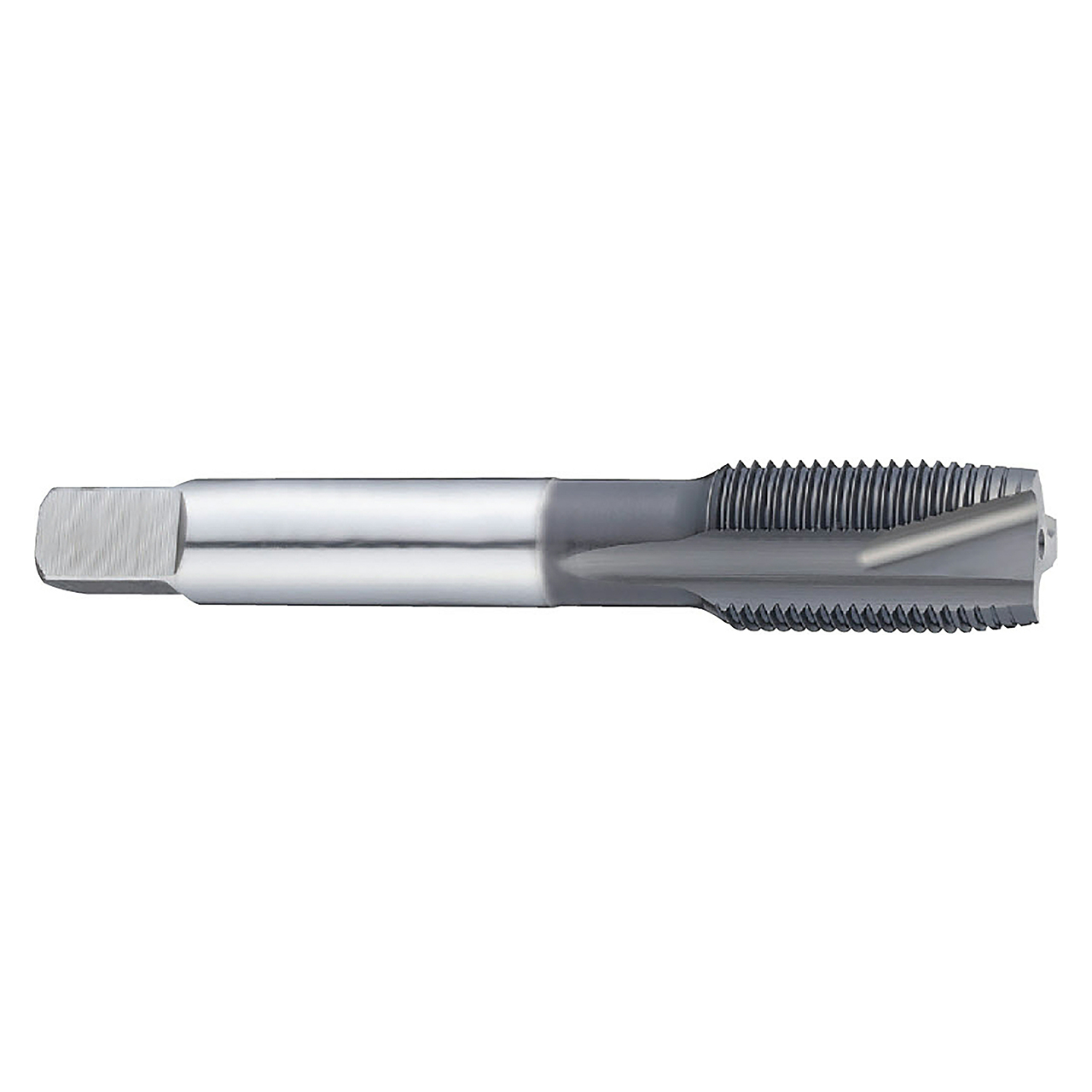

| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.1463"
Thread Size (mm):
3.72mm
Number of Flutes:
3
Chamfer:
Plug
Finish/Coating:
Hardslick
Material:
HSSE-V3
Through Coolant:
No
