Product Specifications
| Diameter (Decimal Inch) | SI402 |
| Diameter (Decimal Inch) | 0.3177" |
| Diameter (mm) | 8.07mm |
| Overall Length (Decimal Inch) | 2.7200" |
| Overall Length (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 0.6690" |
| Thread Length (mm) | 16.99" |
| Square Length (Decimal Inch) | 0.6690" |
| Square Length (mm) | 16.99" |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Neck Diameter (Decimal Inch) | 0.2340" |
| Neck Diameter (mm) | 5.94mm |
| Drill Size (Decimal Inch) | 0.2638" |
| Drill Size (mm) | 6.70mm |
| Useable Length (Decimal Inch) | 1.1300" |
| Useable Length (mm) | 28.70mm |
| Length/Diameter | 3.0xD |
| Coolant Through | No |
| Tap Type | SPPT |
| Number Of Flutes | 3 |
| Size | 1/4 |
| Pitch | 20 TPI |
| Thread Series | UNC |
| Thread Class | 2B |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Hardslick |
| Material | HSSE-V13 |
| Blank Standard | 322 |

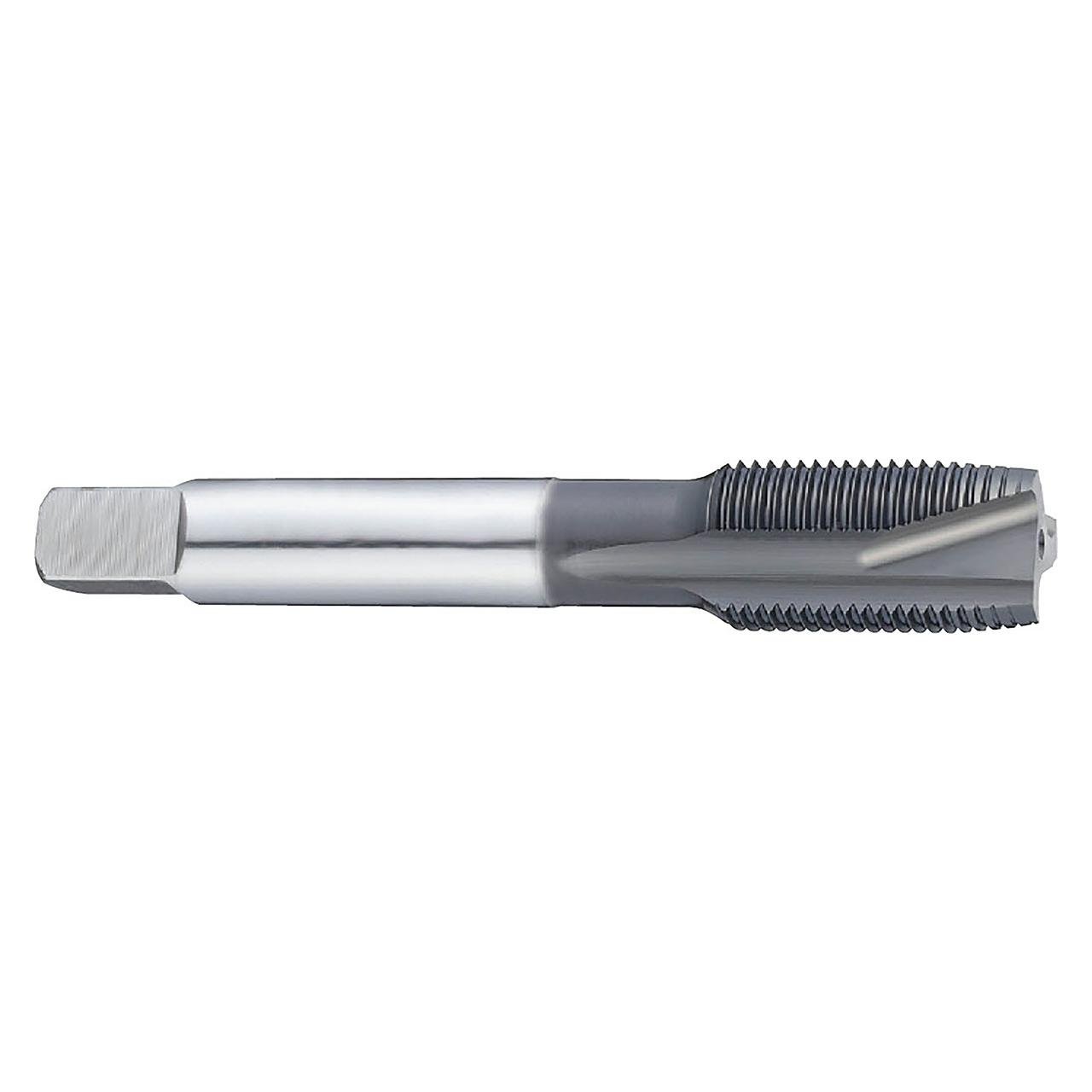

| Product Type | Spiral Point Tap |
