Product Specifications
| EDP Number | SM08310 |
| Diameter (Decimal Inch) | 1.5600" |
| Diameter (Inch) | 1-9/16" |
| Diameter (mm) | 39.69mm |
| Thickness (Decimal Inch) | 0.2500" |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.35mm |
| Insert Height (Decimal Inch) | 0.8120" |
| Insert Height (Inch) | 13/16" |
| Insert Height (mm) | 20.62mm |
| Series | SM08 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 3 |
| Grade | T15 |
| Trade Name | YG Spade Drill SM Point Super Cobalt |
| Application | P,K |
| Coating | TiAlN |
| Material | Super Cobalt |

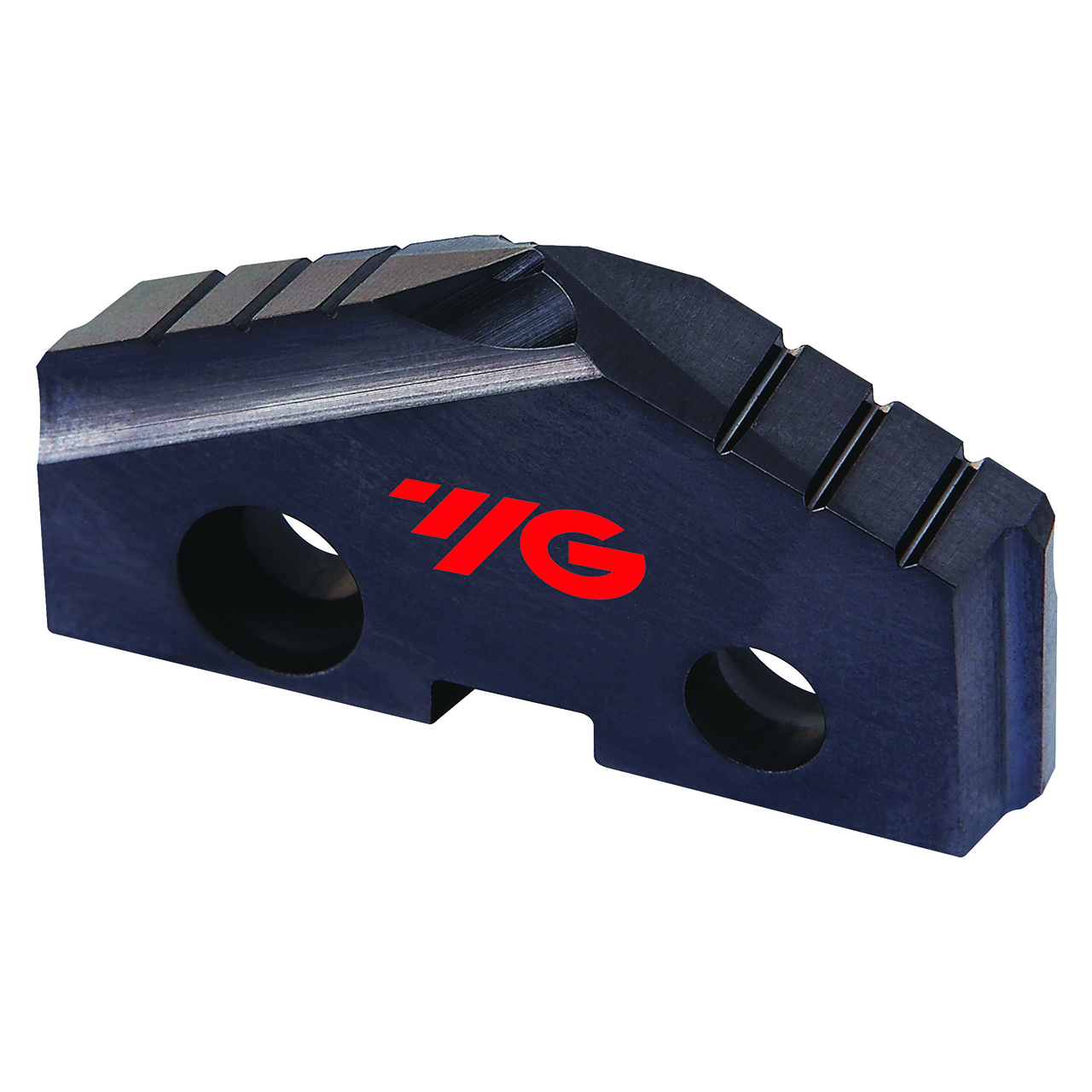

| Product Type | Spade Drill Insert |
