Product Specifications
| Diameter (Decimal Inch) | ST482 |
| Diameter (Decimal Inch) | 0.4592" |
| Diameter (mm) | 11.66mm |
| Overall Length (Decimal Inch) | 3.3800" |
| Overall Length (mm) | 85.85mm |
| Thread Length (Decimal Inch) | 0.6300" |
| Thread Length (mm) | 16.00" |
| Square Length (Decimal Inch) | 0.6300" |
| Square Length (mm) | 16.00" |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 9.32mm |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.3540" |
| Neck Diameter (mm) | 8.99mm |
| Drill Size (Decimal Inch) | 0.3937" |
| Drill Size (mm) | 10.00mm |
| Useable Length (Decimal Inch) | 1.6600" |
| Useable Length (mm) | 42.16mm |
| Length/Diameter | 2.5xD |
| Coolant Through | No |
| Tap Type | SPFL |
| Number Of Flutes | 3 |
| Size | 3/8 |
| Pitch | 16 TPI |
| Thread Series | UNC |
| Thread Class | 2B |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Finish | Hardslick |
| Material | HSSE-V43 |
| Blank Standard | 322 |
| Helix Angle | 40 Degree |

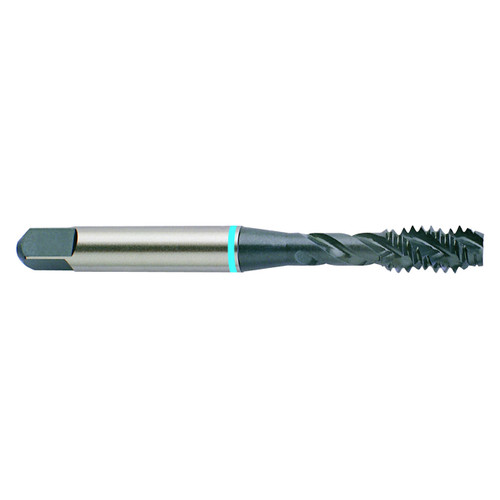

| Product Type | Spiral Flute Tap |
