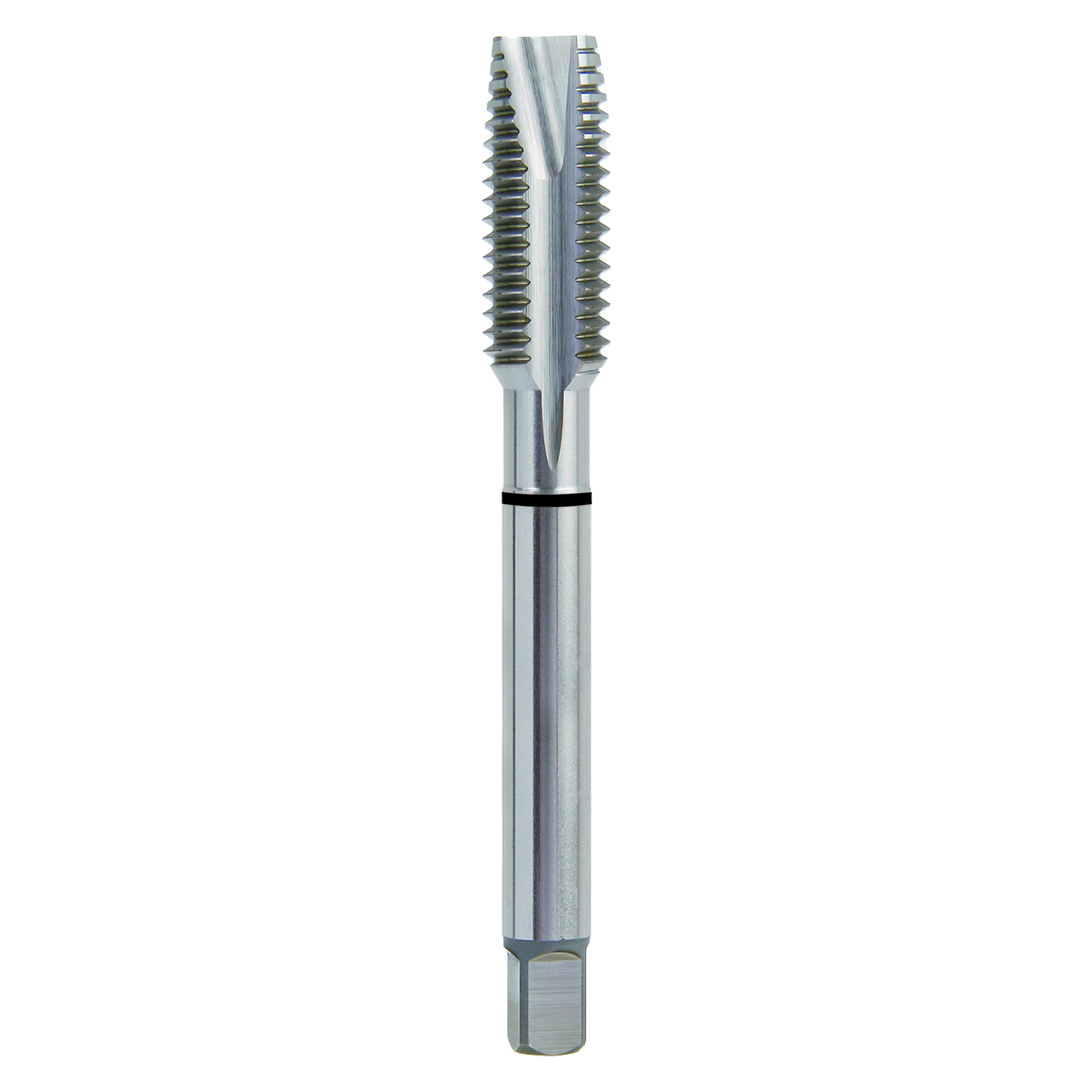

Product Specifications
| EDP Number | T3788C |
| Size & Pitch | M24x3 |
| Diameter (Decimal Inch) | 0.9449" |
| Diameter (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 4.9100" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 124.71mm |
| Thread Length (Decimal Inch) | 1.3390" |
| Thread Length (mm) | 34.01mm |
| Square Length (Decimal Inch) | 0.7500" |
| Square Length (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7600" |
| Shank Diameter (mm) | 19.30mm |
| Square Size (Decimal Inch) | 0.5700" |
| Square Size (mm) | 14.48mm |
| Neck Diameter (Decimal Inch) | 0.7480" |
| Connection (mm) | 19.3 x 14.48mm |
| Connection (Decimal Inch) | 0.76 x 0.57" |
| Useable Length (Decimal Inch) | 2.2200" |
| Neck Diameter (mm) | 19.00mm |
| Drill Size (Decimal Inch) | 0.8375" |
| Drill Size (mm) | 21.27mm |
| Useable Length (mm) | 56.39mm |
| Thread Series | M |
| Pitch Limit | D8 |
| Chamfer Length | 4P-5P |
| Finish | TICN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T3-C |
| Material | HSS-EX |
| Product Type | Spiral Flute Bottom Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
3
Chamfer:
4P - 5P
Material:
HSS-EX
Finish/Coating:
TICN
Through Coolant:
No
interval quantity:
1
