Features
- Manufacturer Part # T5203C
- Weight: 0.2 lbs

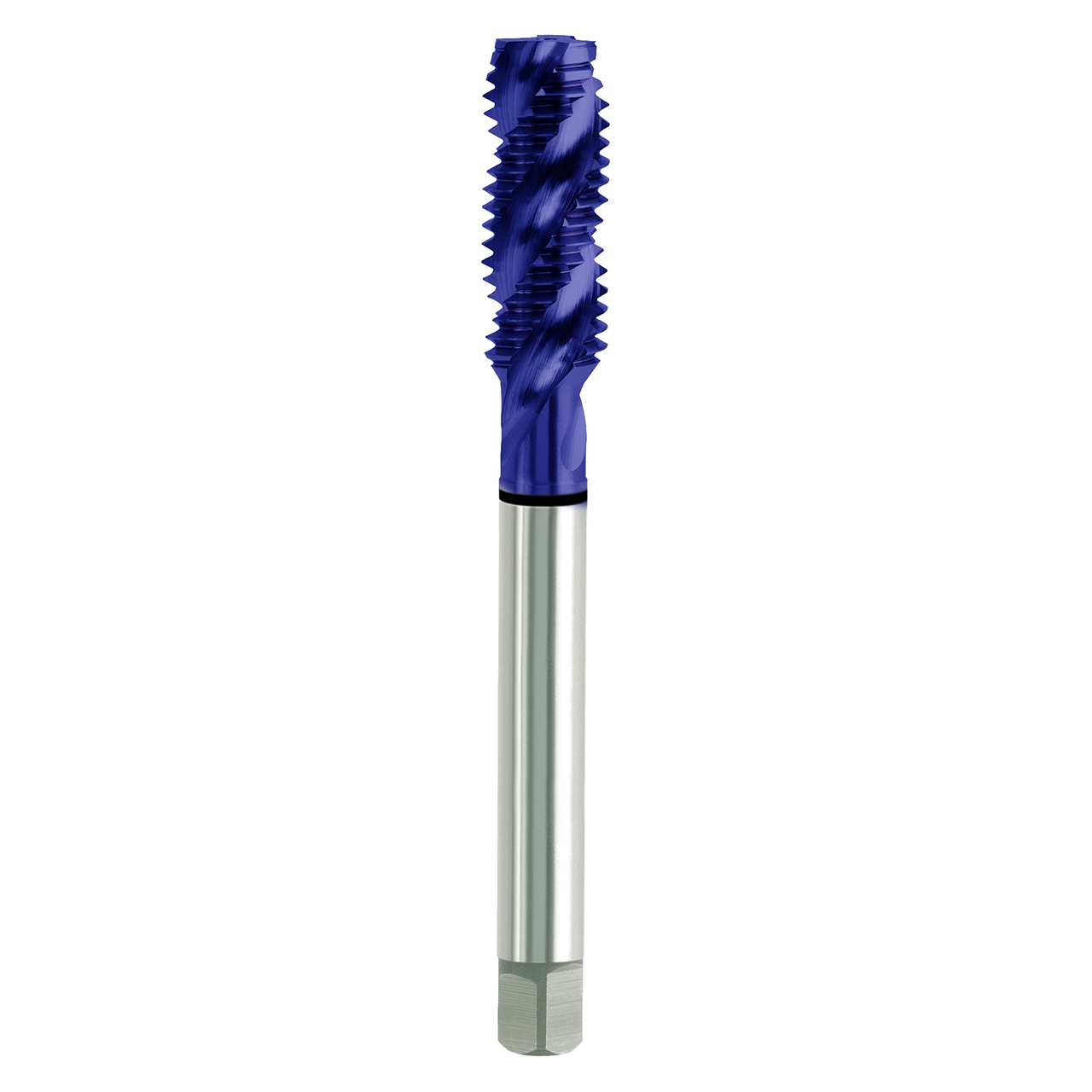

- High vanadium HSS spiral flute combo tap, TiCN coated, round shank with square end
- Specifications: size: M3x0.5, D limit: D3, overall length: 1.94", thread length: .197", shank diameter: .141", square size: .11", square length: .188", no. of flutes: 3
- Reduces tap breakage, ensures accurate thread depth
- Eliminates loose threads due to tap overfeeding
- Improves thread quality and chip evacuation
- Allows tapping of many metals including statinless steels and steels
- Eliminates "bird nests" around shank of tap
- TiCN coated for improved performance and tool life in harder materials or high temperature applications
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (mm):
M3 x 0.5
Thread Limit:
D3
Number of Flutes:
3
Material:
High Speed Steel
Finish/Coating:
TiCN
Through Coolant:
No
Ships:
From Partner Facility
