Product Specifications
| Manufacturer Part Number | T6316788 |
| Thread Size (Inch) | 1" |
| Thread Size (Decimal Inch) | 1.000" |
| Thread Size (mm) | 25.40mm |
| Threads per Inch | 8 |
| Thread Series | UNC |
| Pitch Limit | H4 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 5.130" |
| Overall Length (mm) | 130.30mm |
| Thread Length (Decimal Inch) | 2.500" |
| Thread Length (mm) | 63.50mm |
| Square Length (Decimal Inch) | 0.810" |
| Square Length (mm) | 20.57mm |
| Shank Diameter (Decimal Inch) | 0.800" |
| Shank Diameter (mm) | 20.30mm |
| Square Size (Decimal Inch) | 0.600" |
| Square Size (mm) | 15.24mm |
| Drill Size (Decimal Inch) | 0.886" |
| Drill Size (mm) | 22.51mm |
| Connection Size (Decimal Inch) | 0.800" - 0.600" |
| Connection Size (mm) | 20.30 - 15.24mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 2.500" |
| Usable Length (mm) | 63.50mm |
| Number of Flutes | 4 |
| Coating | Oxide |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T6316 |

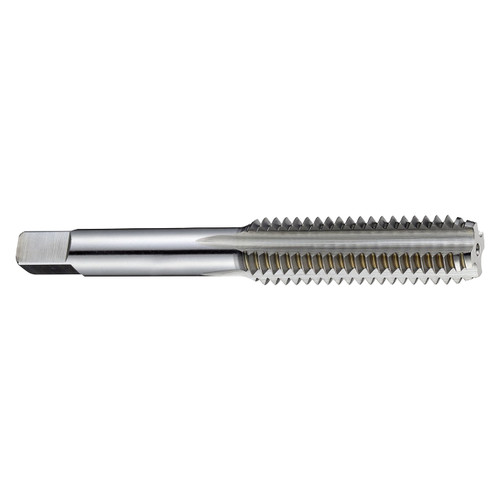

| Product Type | Straight Flute Tap |
