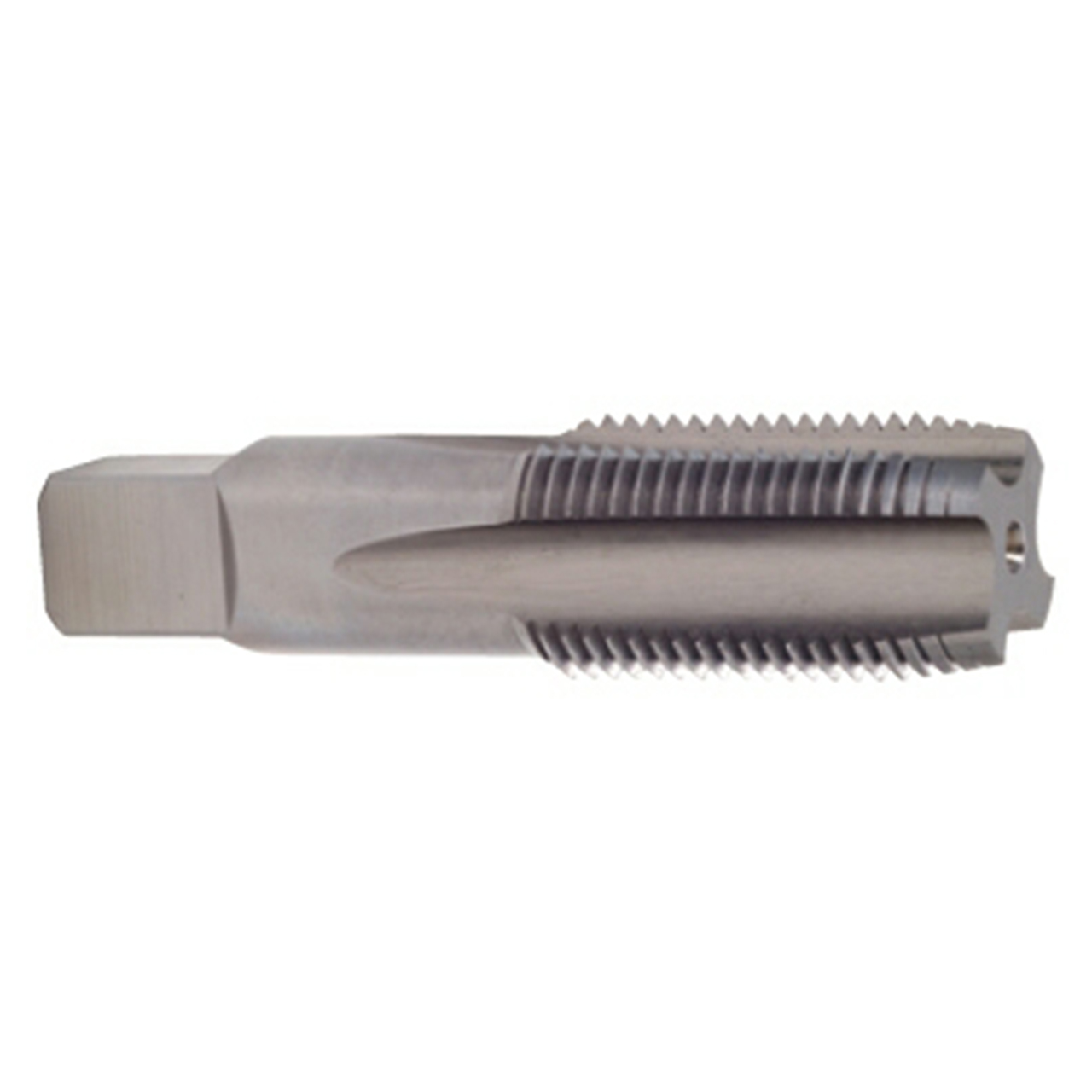

Product Specifications
| EDP Number | T6L36780 |
| Size | 1" |
| Pitch | 11-1/2" |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (mm) | 95.25mm |
| Thread Length (Decimal Inch) | 1.7500" |
| Thread Length (mm) | 44.45mm |
| Square Length (Decimal Inch) | 0.8100" |
| Square Length (mm) | 20.57mm |
| Shank Diameter (Decimal Inch) | 1.1250" |
| Shank Diameter (mm) | 28.58mm |
| Square Size (Decimal Inch) | 0.8430" |
| Square Size (mm) | 21.41mm |
| Drill Size (Decimal Inch) | 1.1406" |
| Drill Size (mm) | 28.97mm |
| Useable Length (Decimal Inch) | 1.7500" |
| Useable Length (mm) | 44.45mm |
| Number of Flutes | 5 |
| Series | T6536 |
| Chamfer Length | 4P-5P |
| Thread Series | NPS |
| Coating | Steam Oxide |
| Material | HSS |
| Blank Standard | 311 |
| Helix Angle (Degree) | 0 Degree |
| Length/Diameter | 2.0 xD |
| Chamfer Type | Modified Bottoming |
| Tap Type | NPS Straight Pipe Tap |
| Shank Type | Square |
| Trade Name | YG-Pipe Taps |
| Product Type | Straight Flute Pipe Tap |
