| Manufacturer Part Number | T7316227 |
| Thread Size | #5 |
| Thread Size (Decimal Inch) | 0.125" |
| Thread Size (mm) | 3.18mm |
| Threads per Inch | 44 |
| Thread Series | UNF |
| Pitch Limit | H2 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 1.940" |
| Overall Length (mm) | 49.28mm |
| Thread Length (Decimal Inch) | 0.630" |
| Thread Length (mm) | 16.00mm |
| Square Length (Decimal Inch) | 0.190" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (mm) | 3.60mm |
| Square Size (Decimal Inch) | 0.110" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.104" |
| Drill Size (mm) | 2.65mm |
| Connection Size (Decimal Inch) | 0.141" - 0.110" |
| Connection Size (mm) | 3.60 - 2.79mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 0.630" |
| Usable Length (mm) | 16.00mm |
| Number of Flutes | 3 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7316 |

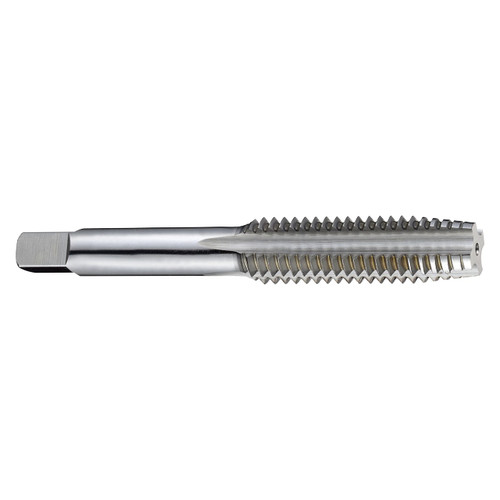

| Product Type | Straight Flute Tap |
