| Manufacturer Part Number | T7316828 |
| Thread Size (Inch) | 1-1/8" |
| Thread Size (Decimal Inch) | 1.125" |
| Thread Size (mm) | 28.58mm |
| Threads per Inch | 7 |
| Thread Series | UNC |
| Pitch Limit | H4 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 5.440" |
| Overall Length (mm) | 138.18mm |
| Thread Length (Decimal Inch) | 2.560" |
| Thread Length (mm) | 65.02mm |
| Square Length (Decimal Inch) | 0.880" |
| Square Length (mm) | 22.35mm |
| Shank Diameter (Decimal Inch) | 0.896" |
| Shank Diameter (mm) | 22.80mm |
| Square Size (Decimal Inch) | 0.672" |
| Square Size (mm) | 17.07mm |
| Drill Size (Decimal Inch) | 0.995" |
| Drill Size (mm) | 25.28mm |
| Connection Size (Decimal Inch) | 0.896" - 0.672" |
| Connection Size (mm) | 22.80 - 17.07mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 2.560" |
| Usable Length (mm) | 65.02mm |
| Number of Flutes | 4 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7316 |

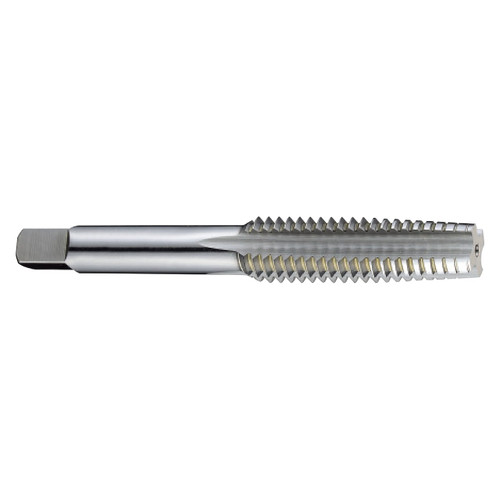

| Product Type | Straight Flute Tap |
