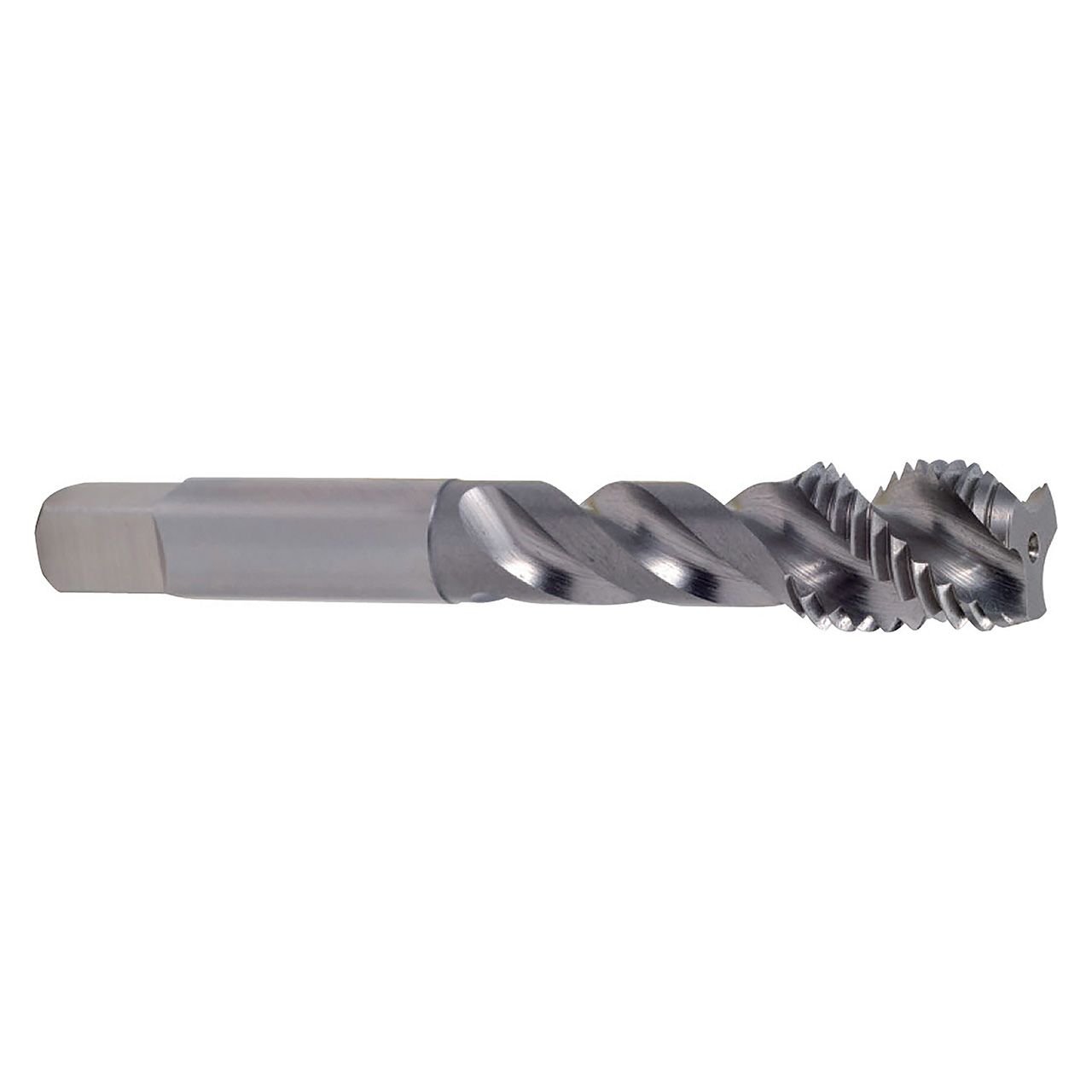

| Manufacturer Part Number | T7406242 |
| Thread Size | #6 |
| Thread Size (Decimal Inch) | 0.138" |
| Thread Size (mm) | 3.51mm |
| Threads per Inch (TPI) | 32 |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Overall Length (Decimal Inch) | 2.380" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.354" |
| Thread Length (mm) | 8.99mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.194" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Decimal Inch) | 0.152" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.131" |
| Neck Diameter (mm) | 3.33mm |
| Drill Size (Decimal Inch) | 0.148" |
| Drill Size (mm) | 3.76mm |
| Connection Size (Decimal Inch) | 0.194" x 0.152" |
| Connection Size (mm) | 4.93 x 3.86mm |
| Usable Length (Decimal Inch) | 0.880" |
| Usable Length (mm) | 22.35mm |
| Length / Diameter | 2.5 x D |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 50 Degree |
| Coating | Bright |
| Material | HSS |
| Blank Standard | 322 |
| Series | T7406 |
| Product Type | Screw Thread Insert |
