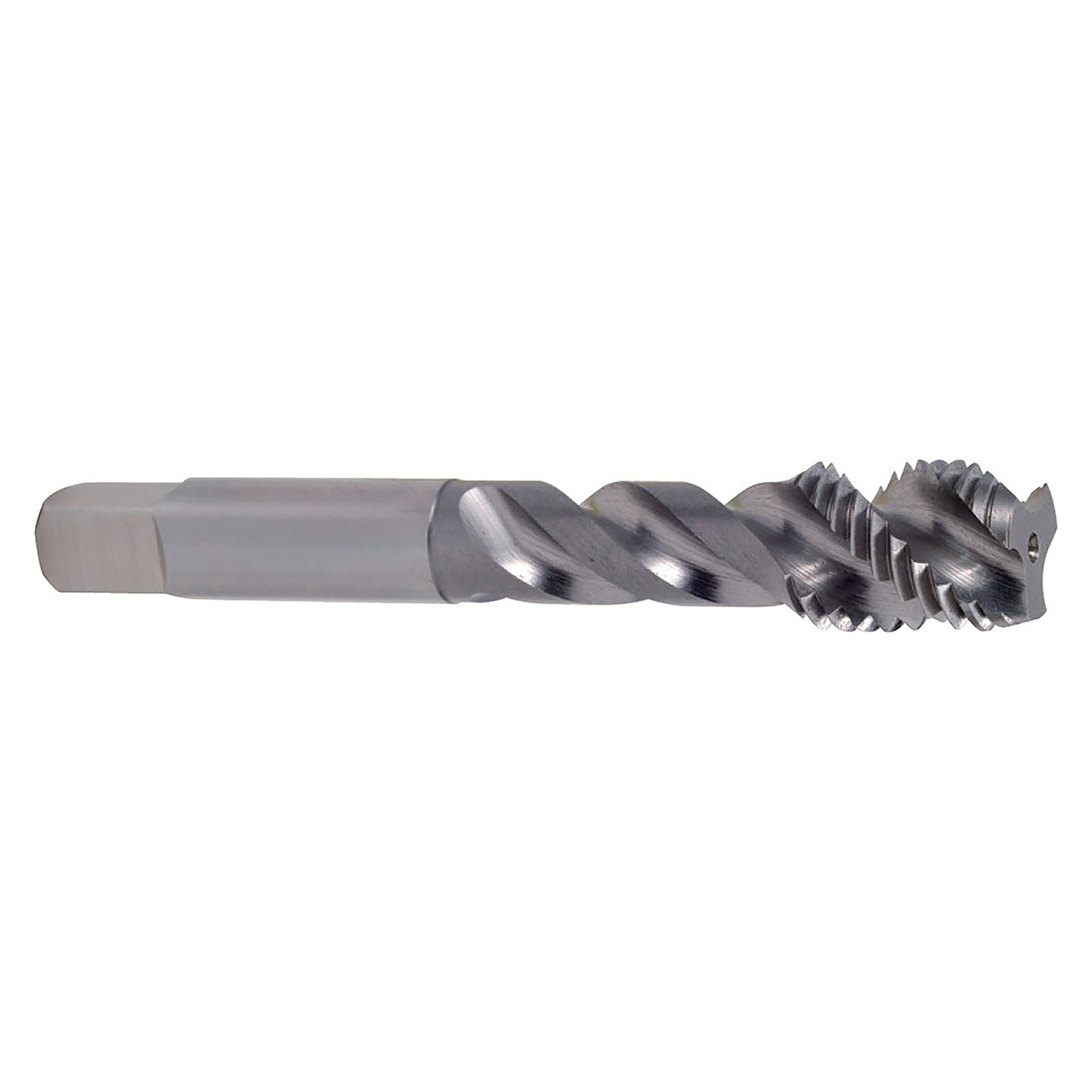

Product Specifications
| Diameter (Decimal Inch) | T7406282 |
| Diameter (Decimal Inch) | 0.2067" |
| Diameter (mm) | 5.25mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.3540" |
| Thread Length (mm) | 8.99" |
| Square Length (Decimal Inch) | 0.3540" |
| Square Length (mm) | 8.99" |
| Shank Diameter (Decimal Inch) | 0.2200" |
| Shank Diameter (mm) | 5.59mm |
| Square Size (Decimal Inch) | 0.1650" |
| Square Size (mm) | 4.19mm |
| Neck Diameter (Decimal Inch) | 0.1570" |
| Neck Diameter (mm) | 3.99mm |
| Drill Size (Decimal Inch) | 0.1732" |
| Drill Size (mm) | 4.40mm |
| Useable Length (Decimal Inch) | 0.9400" |
| Useable Length (mm) | 23.88mm |
| Length/Diameter | 2.5xD |
| Coolant Through | No |
| Tap Type | SPFL |
| Number Of Flutes | 3 |
| Size | #8 |
| Pitch | 32 TPI |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 322 |
| Helix Angle | 50 Degree |
| Product Type | Screw Thread Insert |
