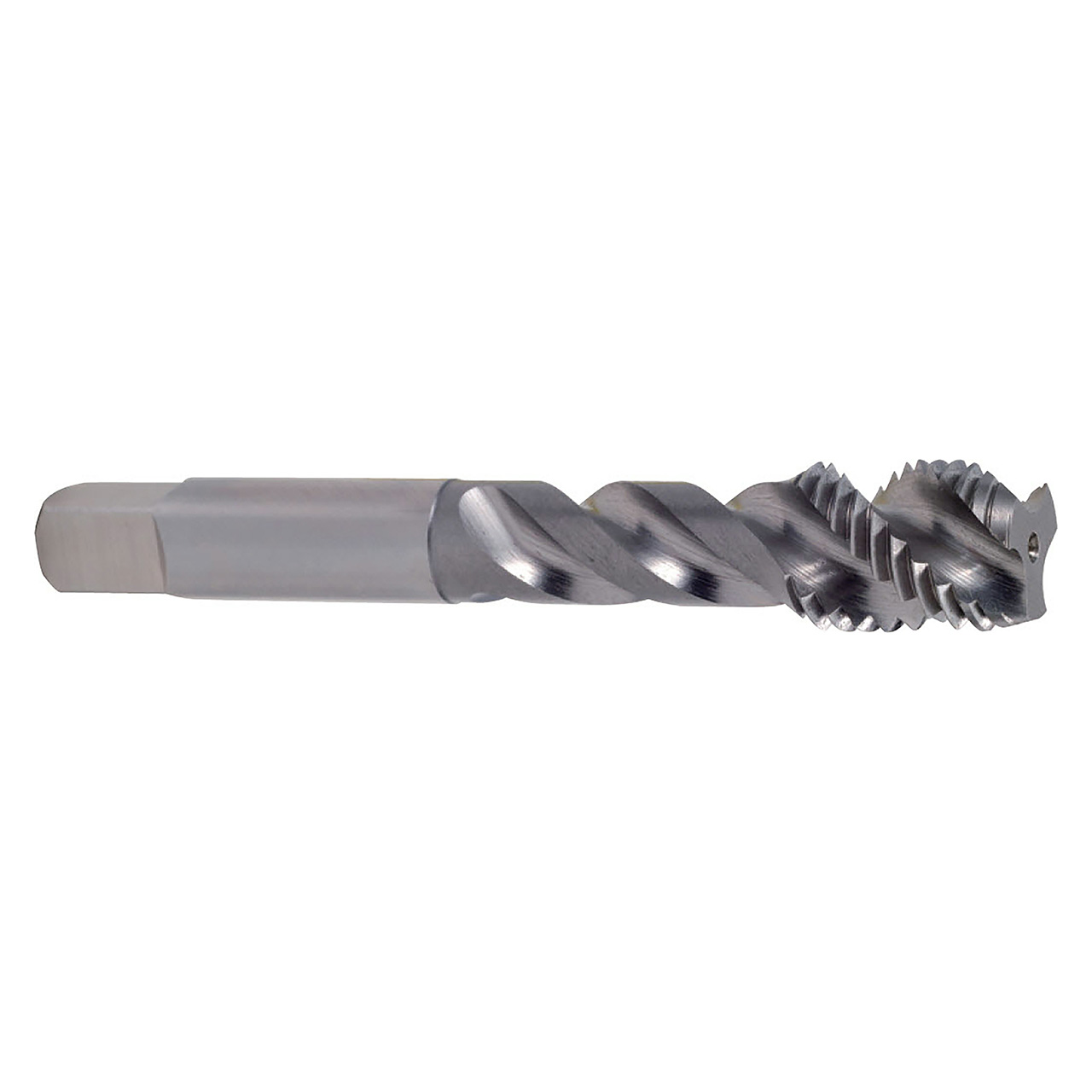

Product Specifications
| Diameter (Decimal Inch) | T7406323 |
| Diameter (Decimal Inch) | 0.2465" |
| Diameter (mm) | 6.26mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Thread Length (Decimal Inch) | 0.4330" |
| Thread Length (mm) | 11.00" |
| Square Length (Decimal Inch) | 0.4330" |
| Square Length (mm) | 11.00" |
| Shank Diameter (Decimal Inch) | 0.2550" |
| Shank Diameter (mm) | 6.48mm |
| Square Size (Decimal Inch) | 0.1910" |
| Square Size (mm) | 4.85mm |
| Neck Diameter (Decimal Inch) | 0.1800" |
| Neck Diameter (mm) | 4.57mm |
| Drill Size (Decimal Inch) | 0.2008" |
| Drill Size (mm) | 5.10mm |
| Useable Length (Decimal Inch) | 1.0000" |
| Useable Length (mm) | 25.40mm |
| Length/Diameter | 2.5xD |
| Coolant Through | No |
| Tap Type | SPFL |
| Number Of Flutes | 3 |
| Size | #10 |
| Pitch | 24 TPI |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Finish | Bright |
| Material | HSS |
| Blank Standard | 322 |
| Helix Angle | 50 Degree |
| Product Type | Screw Thread Insert |
