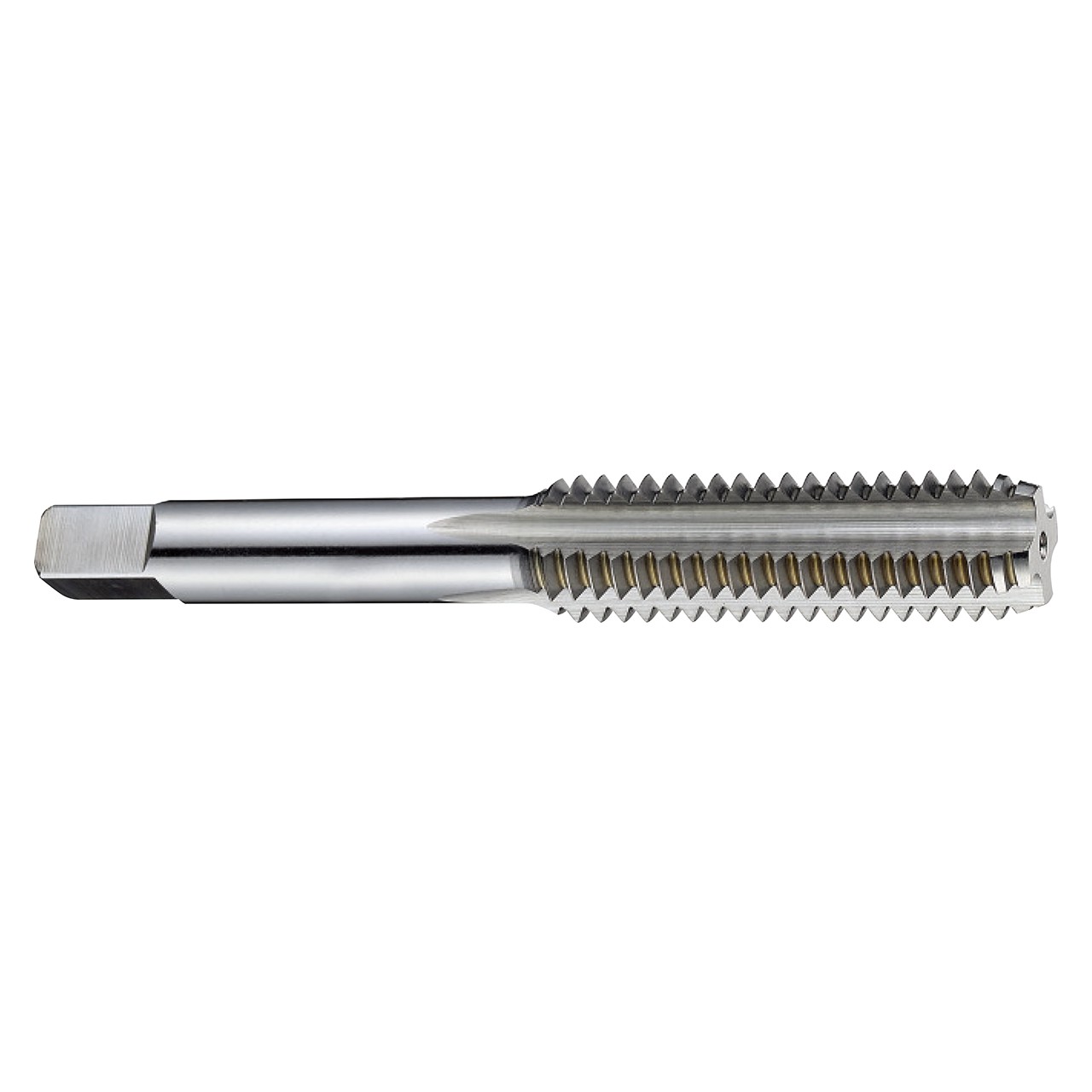

YG1 T8315288 | M M5x0.8 Size x 22.35mm Thread Length x 4.90mm Shank x 60.45mm OAL D4 Bottoming Chamfer Type 4 Flute TiN Coated HSS T8315 Straight Flute Tap

$14.63 $10.39
(You save $4.24)
Brand:
YG1
Thread Size (Decimal Inch):
0.1969"
Thread Size (mm):
5.00mm
Thread Limit:
D4
Overall Length (Decimal Inch):
2.3800"
Overall Length (mm):
60.45mm
Number of Flutes:
4
Chamfer:
Bottoming
Material:
HSS
Finish/Coating:
TiN
Thread Standard:
302
interval quantity:
1
SKU:
15012499
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberT8315288
Thread SizeM5
Thread Size (Decimal Inch)0.197"
Thread Size (mm)5.00mm
Pitch0.80
Thread SeriesM
Pitch LimitD4
Chamfer TypeBottoming
Chamfer Length1.5P-2P
Blank Standard302
Overall Length (Decimal Inch)2.380"
Overall Length (mm)60.45mm
Thread Length (Decimal Inch)0.880"
Thread Length (mm)22.35mm
Square Length (Decimal Inch)0.250"
Square Length (mm)6.35mm
Shank Diameter (Decimal Inch)0.194"
Shank Diameter (mm)4.90mm
Square Size (Decimal Inch)0.152"
Square Size (mm)3.86mm
Drill Size (Decimal Inch)0.168"
Drill Size (mm)4.27mm
Connection Size (Decimal Inch)0.194" - 0.152"
Connection Size (mm)4.90 - 3.86mm
Length / Diameter2xD
Usable Length (Decimal Inch)0.880"
Usable Length (mm)22.35mm
Number of Flutes4
CoatingTiN
MaterialHSS
Shank TypeSquare
ApplicationP,M,K,N
SeriesT8315
Product TypeStraight Flute Tap
