| Manufacturer Part Number | TA506S |
| Size & Pitch | M12x1.75 |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 4.3310" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 110.01mm |
| Thread Length (Decimal Inch) | 0.5910" |
| Thread Length (mm) | 15.01mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 9.32mm |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.3540" |
| Connection (mm) | 9.32 x 6.99mm |
| Connection (Decimal Inch) | 0.367 x 0.275" |
| Useable Length (Decimal Inch) | 2.0670" |
| Neck Diameter (mm) | 8.99mm |
| Drill Size (Decimal Inch) | 0.4098" |
| Drill Size (mm) | 10.41mm |
| Useable Length (mm) | 52.50mm |
| Thread Series | M |
| Pitch Limit | D6 |
| Chamfer Length | 2P-3P |
| Finish | Oxide |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | TA-S |
| Material | HSS-EX |

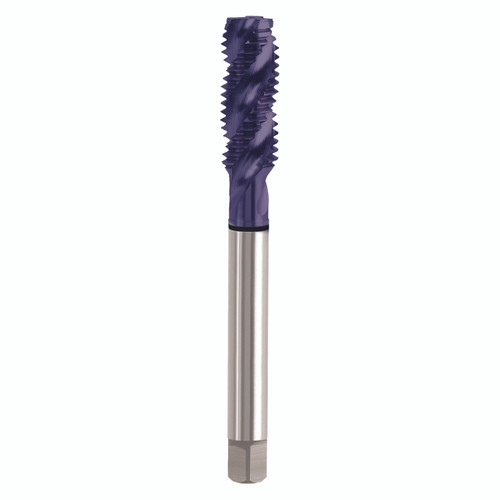

| Product Type | Spiral Flute Bottom Tap |
