Product Specifications
| EDP Number | TCA543C |
| Size & Pitch | 7/16-20 |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 3.1600" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 80.26mm |
| Thread Length (Decimal Inch) | 0.4720" |
| Thread Length (mm) | 11.99mm |
| Square Length (Decimal Inch) | 0.4100" |
| Square Length (mm) | 10.41mm |
| Shank Diameter (Decimal Inch) | 0.3230" |
| Shank Diameter (mm) | 8.20mm |
| Square Size (Decimal Inch) | 0.2420" |
| Square Size (mm) | 6.15mm |
| Neck Diameter (Decimal Inch) | 0.3110" |
| Connection (mm) | 8.2 x 6.15mm |
| Connection (Decimal Inch) | 0.323 x 0.242" |
| Useable Length (Decimal Inch) | 1.8500" |
| Neck Diameter (mm) | 7.90mm |
| Drill Size (Decimal Inch) | 0.3920" |
| Drill Size (mm) | 9.96mm |
| Useable Length (mm) | 46.99mm |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Length | 2P-3P |
| Finish | Oxide |
| Blank Standard | 302A |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 3 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Green |
| Trade Name | Combo Tap INOX |
| Series | TCA-C |
| Material | HSS-EX |

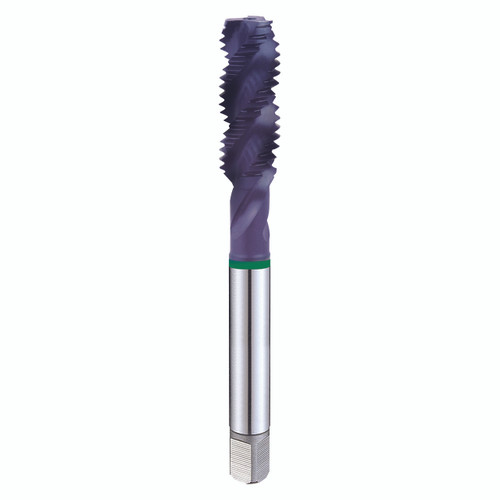

| Product Type | Spiral Flute Bottom Tap |
