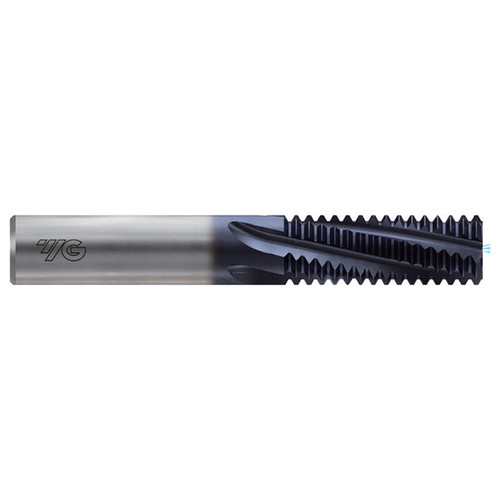

YG1 TD670 | M18 x 1.5 Thread x 0.4900" Diameter x 0.5000" Shank x 3.5000" OAL 4 Flute TiAN Coated Carbide Helical Flute Thread Mill

$304.48 $219.23
(You save $85.25)
Brand:
YG1
Thread Size (Inch):
M18
Threads Per Inch:
1.5 TPI
Cutter Diameter (Inch):
24/49"
Cutter Diameter (Decimal Inch):
0.4900"
Cutter Diameter (mm):
12.45mm
Number of Flutes:
4
Finish/Coating:
TiAN
Material:
Carbide
interval quantity:
1
SKU:
15013124
UPC:
Weight:
0.31 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products


Product Specifications
Manufacturer Part NumberTD670
Thread Diameter (Inch)M18
Threads Per Inch1.5 TPI
Diameter (Inch)24/49"
Diameter (Decimal Inch)0.4900"
Diameter (mm)12.45mm
Shank Diameter (Inch)1/2"
Shank Diameter (Decimal Inch)0.5000"
Shank Diameter (mm)12.70mm
Thread Length (Inch)1-1/4"
Thread Length (Decimal Inch)1.2500"
Thread Length (mm)31.75mm
Overall Length (Inch)3-1/2"
Overall Length (Decimal Inch)3.5000"
Overall Length (mm)88.90mm
Number of Flutes4
SeriesTD
Thread SeriesM
Shank StylePlain
Helix Angle15 Degree
CoatingTiAN
MaterialCarbide
TypeMetric Internal Threads - DIN 13
ApplicationP, K, N
Cutting DirectionRight
