Product Specifications

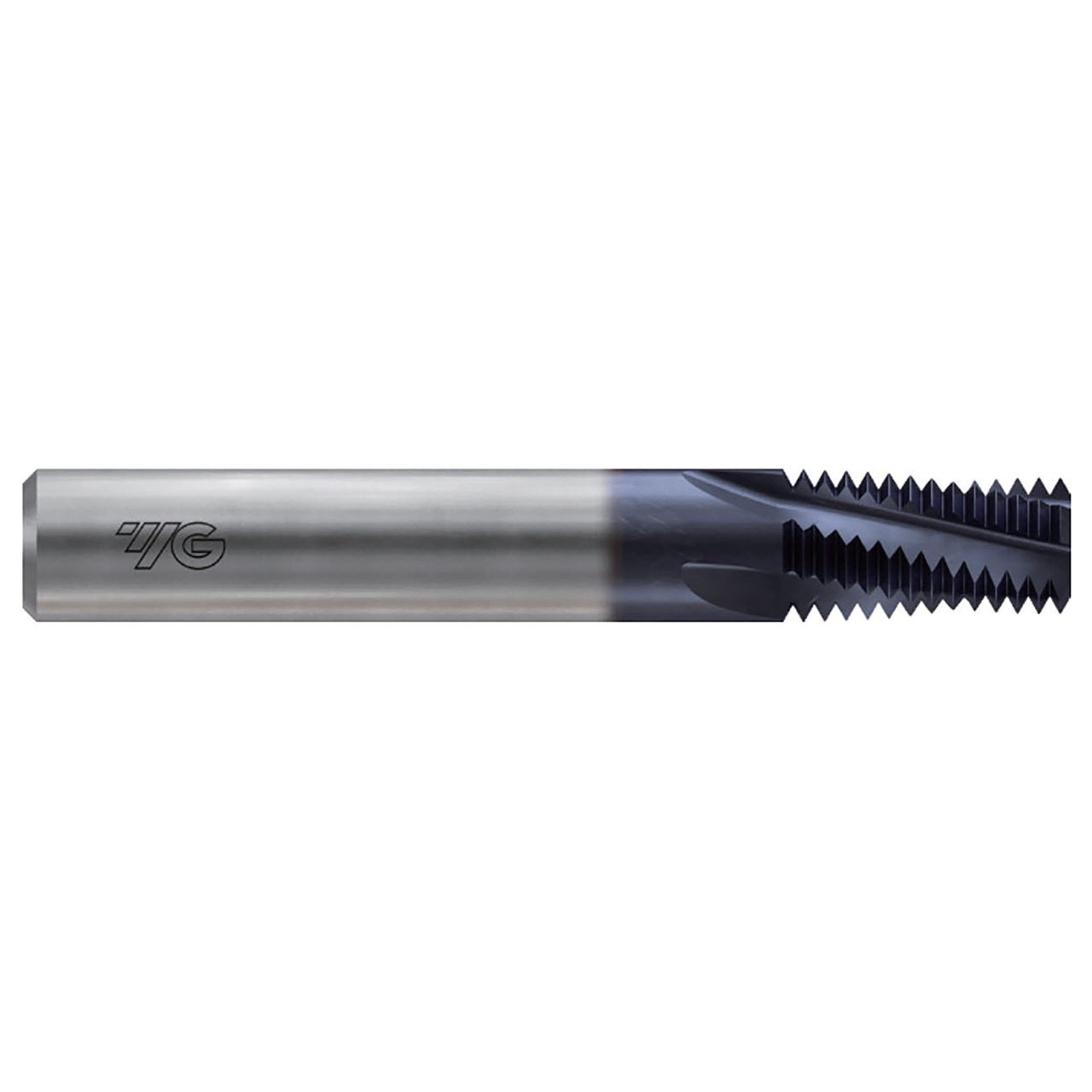

| Manufacturer Part Number | TFF40 |
| Thread Diameter (Inch) | 2 1/2 - 6" |
| Threads Per Inch | 8 TPI |
| Diameter (Inch) | 38/51" |
| Diameter (Decimal Inch) | 0.7450" |
| Diameter (mm) | 18.92mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Thread Length (Inch) | 1-1/2" |
| Thread Length (Decimal Inch) | 1.5000" |
| Thread Length (mm) | 38.10mm |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.0000" |
| Overall Length (mm) | 127.00mm |
| Number of Flutes | 4 |
| Series | TF |
| Thread Series | NPT |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAN |
| Material | Carbide |
| Type | Unified Internal Threads - ANSI B 1.20.1 (NPT) |
| Application | P, K, N |
| Cutting Direction | Right |
