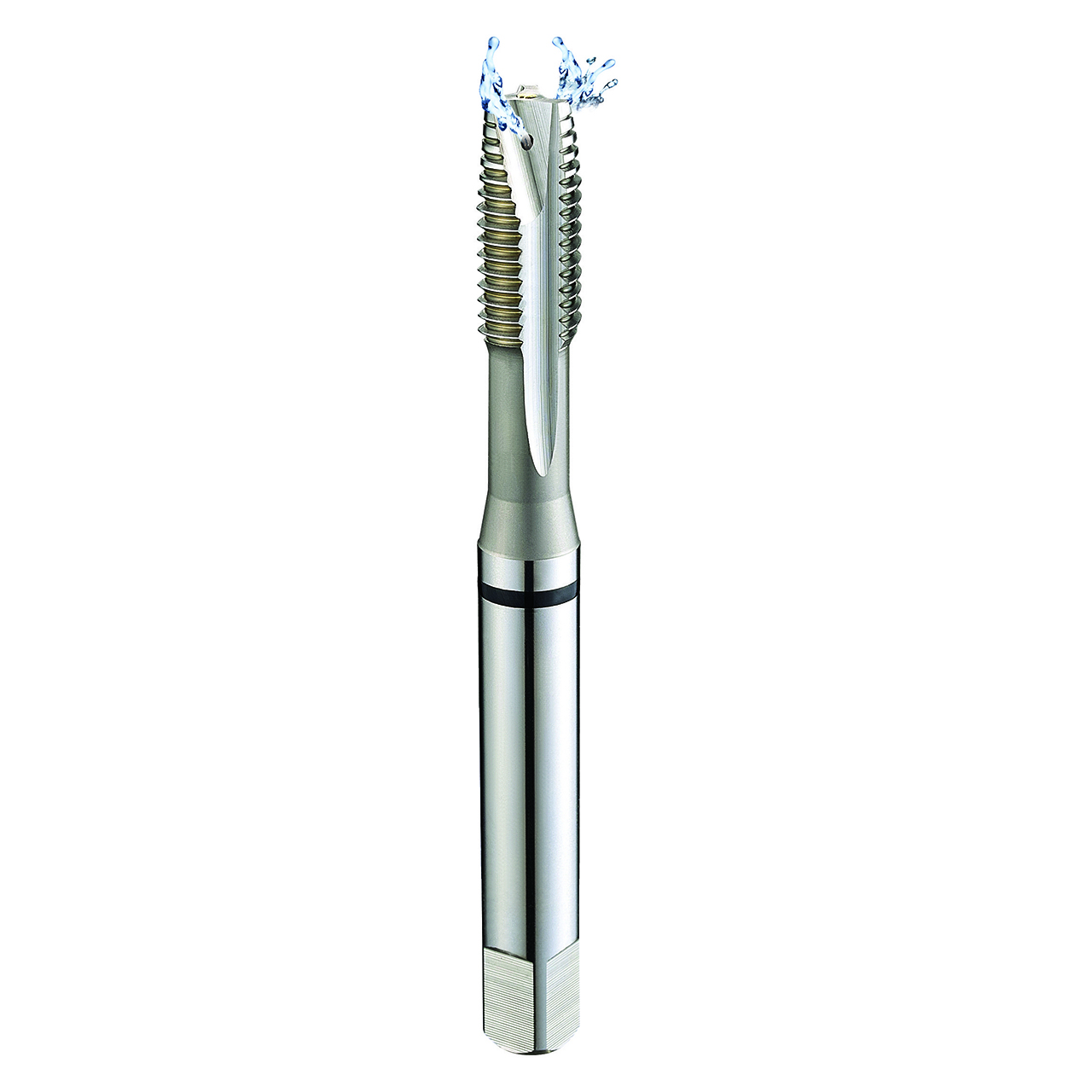

Product Specifications
| EDP Number | TH426 |
| Size & Pitch | M10x1.5 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 2.9400" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 74.68mm |
| Thread Length (Decimal Inch) | 0.7480" |
| Thread Length (mm) | 19.00mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3810" |
| Shank Diameter (mm) | 9.68mm |
| Square Size (Decimal Inch) | 0.2860" |
| Square Size (mm) | 7.26mm |
| Neck Diameter (Decimal Inch) | 0.3100" |
| Connection (mm) | 9.68 x 7.26mm |
| Connection (Decimal Inch) | 0.381 x 0.286" |
| Useable Length (Decimal Inch) | 1.2520" |
| Neck Diameter (mm) | 7.87mm |
| Drill Size (Decimal Inch) | 0.3400" |
| Drill Size (mm) | 8.64mm |
| Useable Length (mm) | 31.80mm |
| Thread Series | M |
| Pitch Limit | D6 |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | Yes |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | TH |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
