Product Specifications
| Diameter (Decimal Inch) | TKS63435 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 2.9400" |
| Overall Length (mm) | 74.68mm |
| Thread Length (Decimal Inch) | 0.5120" |
| Thread Length (mm) | 13.00" |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3810" |
| Shank Diameter (mm) | 0.2860" |
| Square Size (Decimal Inch) | 0.2860" |
| Square Size (mm) | 7.26mm |
| Neck Diameter (Decimal Inch) | 0.3100" |
| Neck Diameter (mm) | 7.87mm |
| Drill Size (Decimal Inch) | 0.3490" |
| Drill Size (mm) | 8.86mm |
| Useable (Decimal Inch) | 1.2520" |
| Useable (mm) | 31.80mm |
| Neck Length (Decimal Inch) | 1.2520" |
| Neck Length (mm) | 31.80mm |
| Neck Length (mm) | STFL |
| Number of Flutes | 4 |
| Size | M10 |
| Pitch | 1.25 TPI |
| Thread Series | MF |
| Pitch Limit | D5 |
| Chamfer Type | Modified Bottom Chamfer Type |
| Chamfer Length | 2P-3P |
| Coating | TICN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

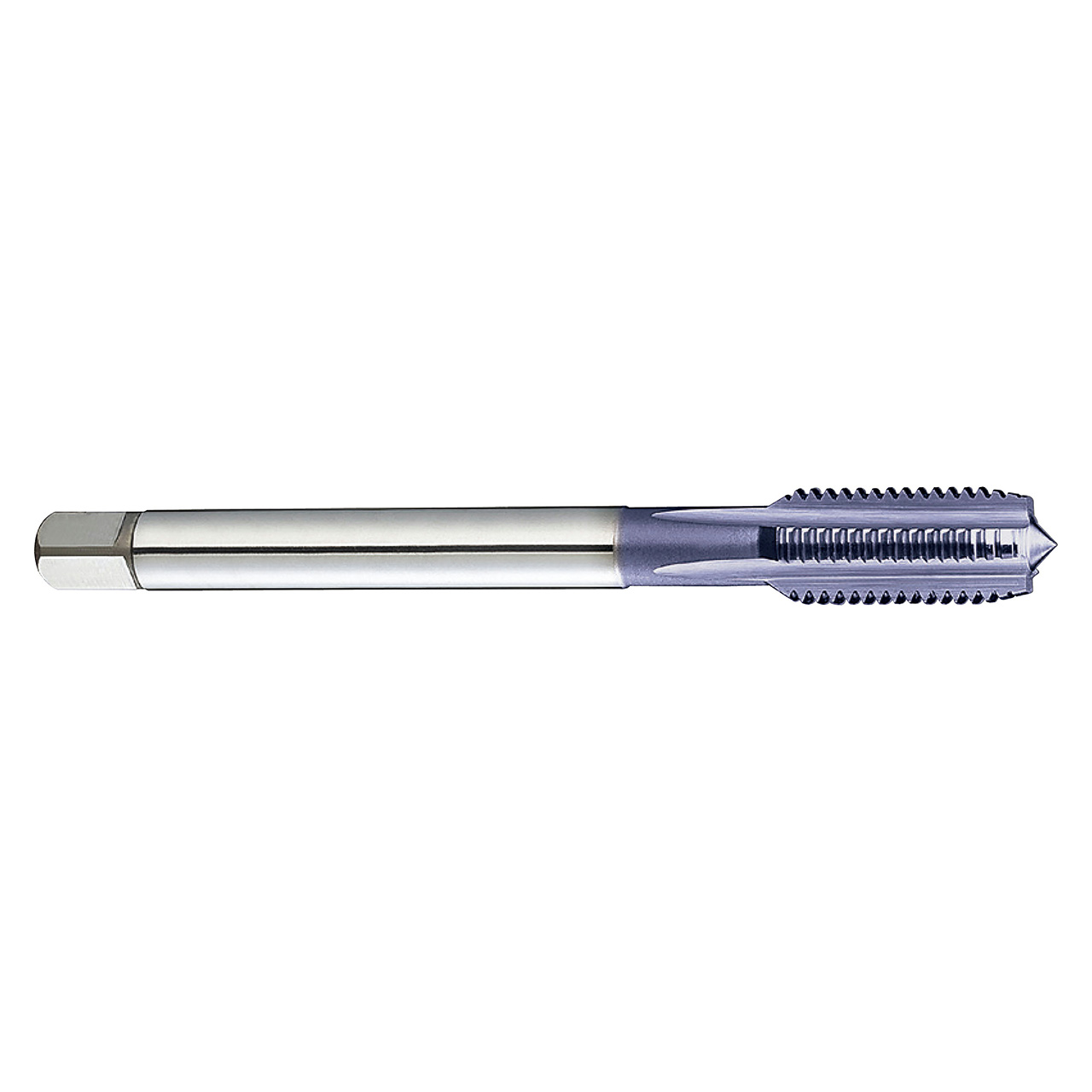

| Product Type | Straight Flute Tap |
