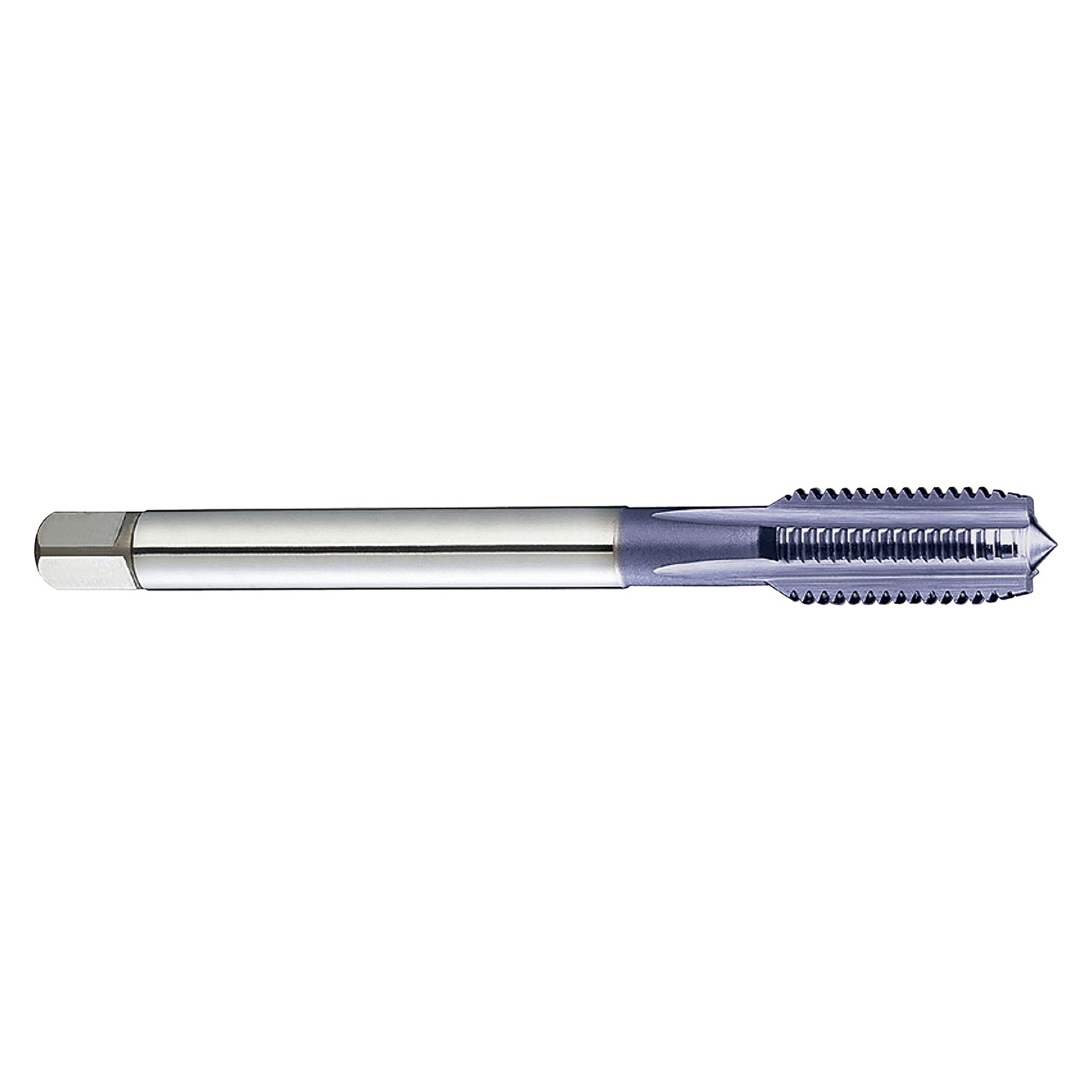

YG1 TKS63616 | MF M16x1.5 Size x 15.01mm Thread Length x 12.19mm Shank x 96.77mm OAL D6 4 Flute TICN Coated HSS-PM TKS67 Straight Flute Tap

$140.00 $99.40
(You save $40.60)
Brand:
YG1
Thread Size (Decimal Inch):
0.6299"
Thread Size (mm):
16.00mm
Thread Limit:
D6
Number of Flutes:
4
Chamfer:
Modified Bottom
Finish/Coating:
TICN
Material:
HSS-PM
Tap Type:
STFL
Overall Length (Decimal Inch):
3.8100"
Overall Length (mm):
96.77mm
interval quantity:
1
SKU:
15035914
UPC:
Weight:
0.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberTKS63616
Diameter (Decimal Inch)0.6299"
Diameter (mm)16.00mm
Overall Length (Decimal Inch)3.8100"
Overall Length (mm)96.77mm
Thread Length (Decimal Inch)0.5910"
Thread Length (mm)15.01"
Square Length (Decimal Inch)0.5600"
Square Length (mm)14.22mm
Shank Diameter (Decimal Inch)0.4800"
Shank Diameter (mm)0.3600"
Square Size (Decimal Inch)0.3600"
Square Size (mm)9.14mm
Neck Diameter (Decimal Inch)0.4690"
Neck Diameter (mm)11.91mm
Drill Size (Decimal Inch)0.5762"
Drill Size (mm)14.64mm
Useable (Decimal Inch)2.2050"
Useable (mm)56.01mm
Neck Length (Decimal Inch)2.2050"
Neck Length (mm)56.01mm
Number of Flutes4
SizeM16
Pitch1.5 TPI
Thread SeriesMF
Pitch LimitD6
Chamfer TypeModified Bottom Chamfer Type
Chamfer Length2P-3P
CoatingTICN
MaterialHSS-PM
Blank Standard302A
Helix Angle45 Degree
Coolant ThroughNo
Product TypeStraight Flute Tap
