Product Specifications
| Diameter (Decimal Inch) | TKS67363 |
| Diameter (Decimal Inch) | 0.2160" |
| Diameter (mm) | 5.49mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.4170" |
| Thread Length (mm) | 10.59" |
| Square Length (Decimal Inch) | 0.2800" |
| Square Length (mm) | 7.11mm |
| Shank Diameter (Decimal Inch) | 0.2200" |
| Shank Diameter (mm) | 0.1650" |
| Square Size (Decimal Inch) | 0.1650" |
| Square Size (mm) | 4.19mm |
| Neck Diameter (Decimal Inch) | 0.1570" |
| Neck Diameter (mm) | 3.99mm |
| Drill Size (Decimal Inch) | 0.1781" |
| Drill Size (mm) | 4.52mm |
| Useable (Decimal Inch) | 0.9060" |
| Useable (mm) | 23.01mm |
| Neck Length (Decimal Inch) | 0.9060" |
| Neck Length (mm) | 23.01mm |
| Neck Length (mm) | STFL |
| Number of Flutes | 3 |
| Size | #12 |
| Pitch | 24 TPI |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Type | Modified Bottom Chamfer Type |
| Chamfer Length | 2P-3P |
| Coating | TICN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

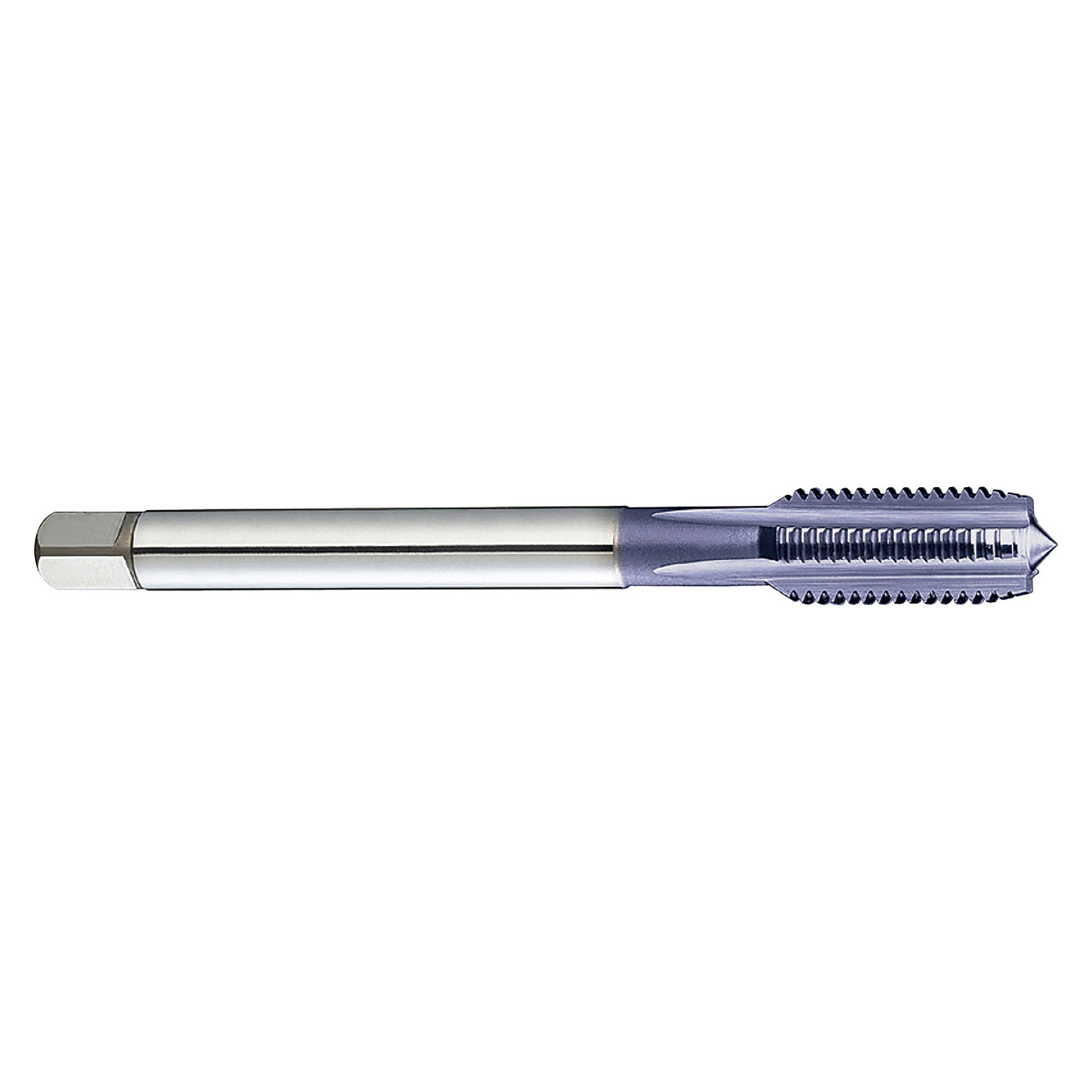

| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Tap Type (Interrupted Thread Machine Tap, Machine Tap, Standard Hand Tap, etc):
STFL
Overall Length (Inch):
2.3800"
Overall Length (mm):
60.45mm
Number of Flutes:
3
Chamfer:
Modified Bottom Chamfer Type
Material:
HSS-PM
Finish/Coating:
TICN
Through Coolant (yes/no):
No
