Excellent choice of carbide with minimum micro-grain size made to handle all heat release from the hard metal YG-1 special CVD coating.
Features:
Product Specifications

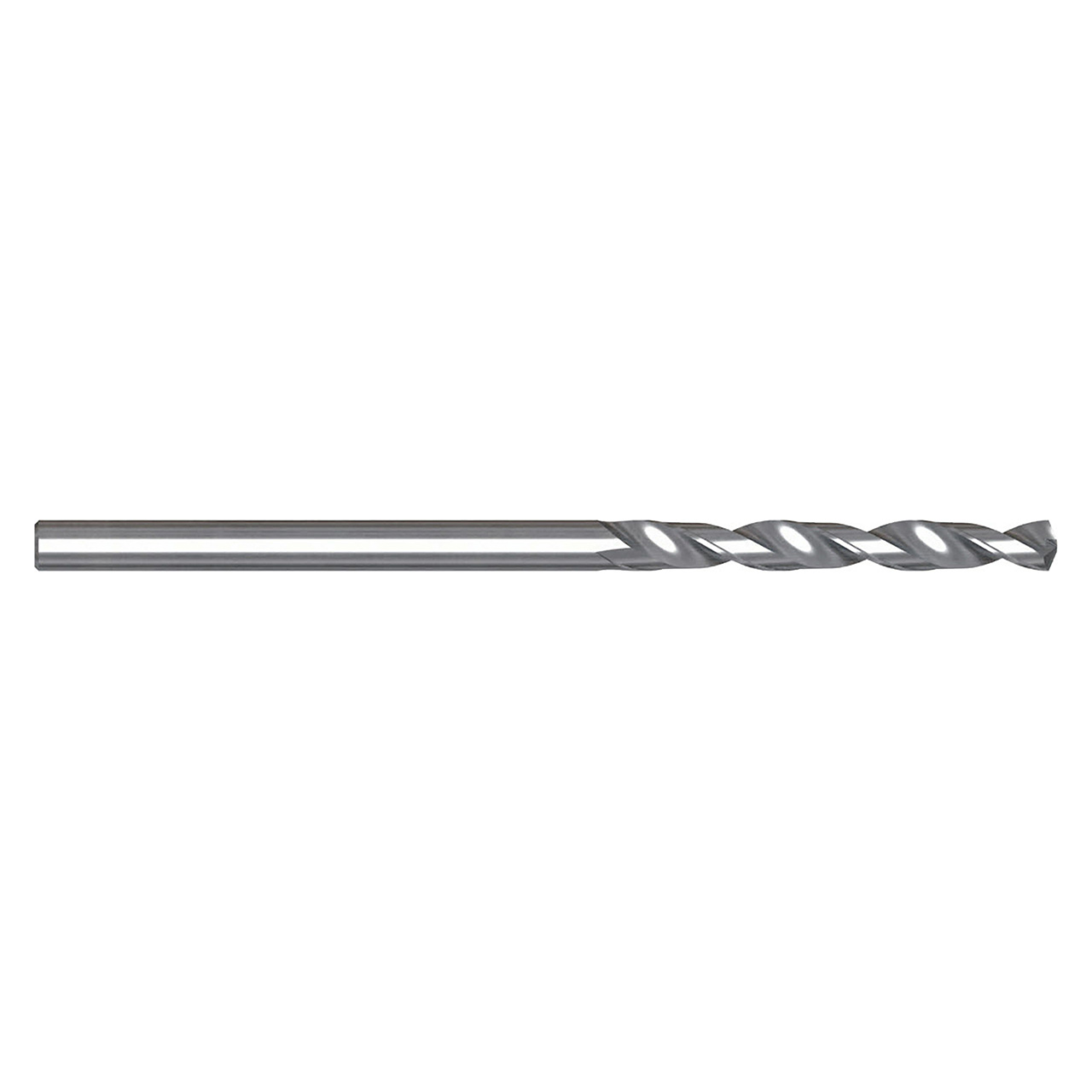

Manufacturer Part Number | UDR5A1AC0129 |
Drill Diameter (Inch) | 9/70" |
Drill Diameter (Decimal Inch) | 0.1285" |
Drill Diameter (mm) | 3.26mm |
Drill Diameter (Wire) | #30 |
Shank Diameter (Inch) | 13/55" |
Shank Diameter (Decimal Inch) | 0.2362" |
Shank Diameter (mm) | 6.00mm |
Flute Length (Inch) | 1-4/39" |
Flute Length (Decimal Inch) | 1.1024" |
Flute Length (mm) | 28.00mm |
Overall Length (Inch) | 2-3/5" |
Overall Length (Decimal Inch) | 2.5984" |
Overall Length (mm) | 66.00mm |
Number of Flutes | 2 |
Series | UDR5A1AC |
Point Angle | 135 Degree |
Shank Type | Plain |
Application | CFRP/Titanium stacks/GFRP |
Machine | CNC Ganty, Robot End-Effectors |
Operation | Drilling |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
9/70"
Drill Bit Size (Decimal Inch):
0.1285"
Drill Bit Size (mm):
3.26mm
Drill Bit Size (Wire):
#30
Drill Point Angle:
135 Degree
Material:
Micron Grain Carbide
Shank Type:
Plain
interval quantity:
1
