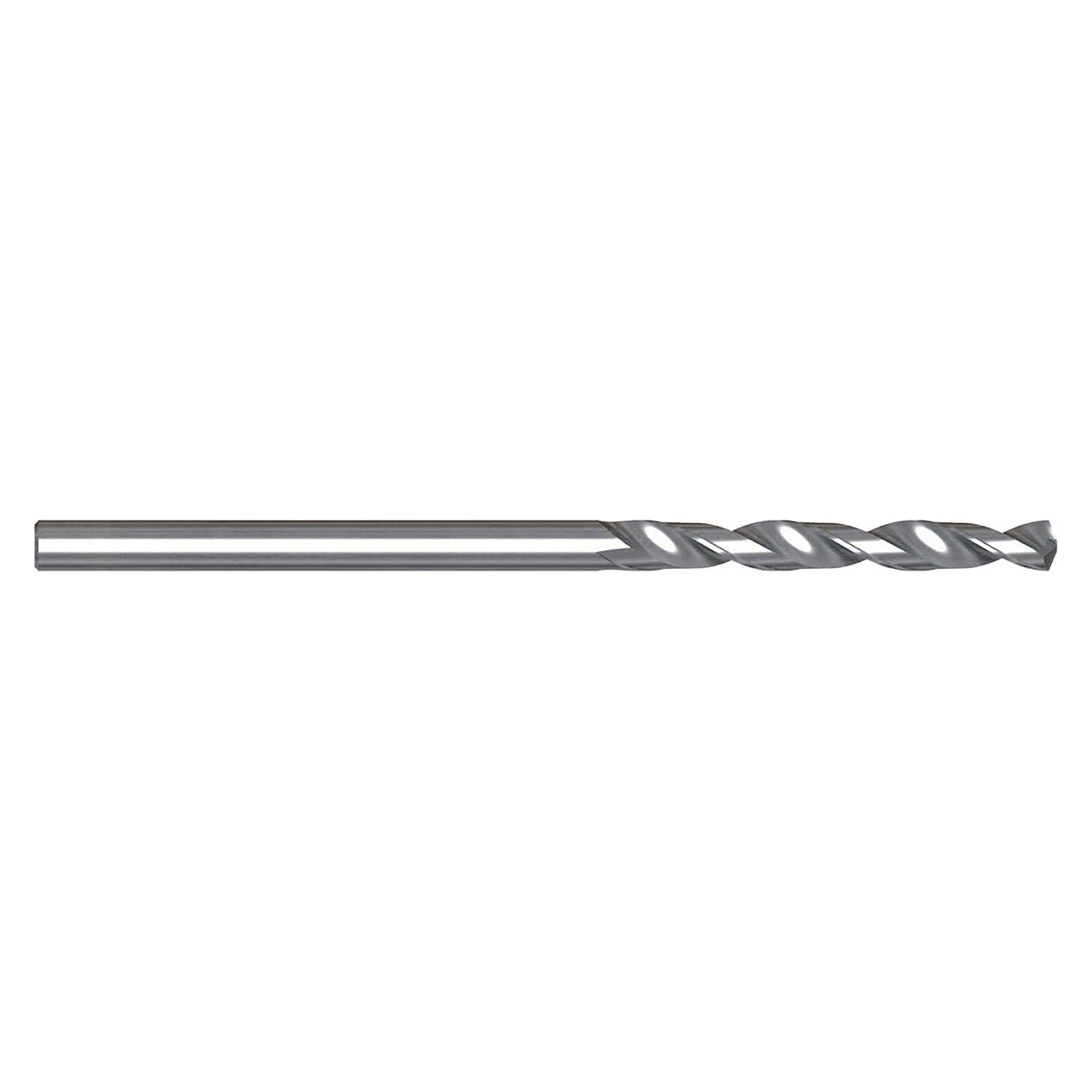

Excellent choice of carbide with minimum micro-grain size made to handle all heat release from the hard metal YG-1 special CVD coating.
Features:
Product Specifications
| Manufacturer Part Number | UDR5A1AC0313 |
| Drill Diameter (Inch) | 5/16" |
| Drill Diameter (Decimal Inch) | 0.3125" |
| Drill Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Inch) | 2-2/23" |
| Flute Length (Decimal Inch) | 2.0866" |
| Flute Length (mm) | 53.00mm |
| Overall Length (Inch) | 3-7/12" |
| Overall Length (Decimal Inch) | 3.5827" |
| Overall Length (mm) | 91.00mm |
| Number of Flutes | 2 |
| Series | UDR5A1AC |
| Point Angle | 135 Degree |
| Shank Type | Plain |
| Application | CFRP/Titanium stacks/GFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
5/16"
Drill Bit Size (Decimal Inch):
0.3125"
Drill Bit Size (mm):
7.94mm
Drill Point Angle:
135 Degree
Material:
Micron Grain Carbide
Shank Type:
Plain
