YG1 UDR5A2AB0400 | 0.1575" Diameter x 0.2362" Shank x 2.9134" OAL 2 Flute Micron Grain Carbide Jobber Length Drill Bit - All Industrial Tool Supply
YG1

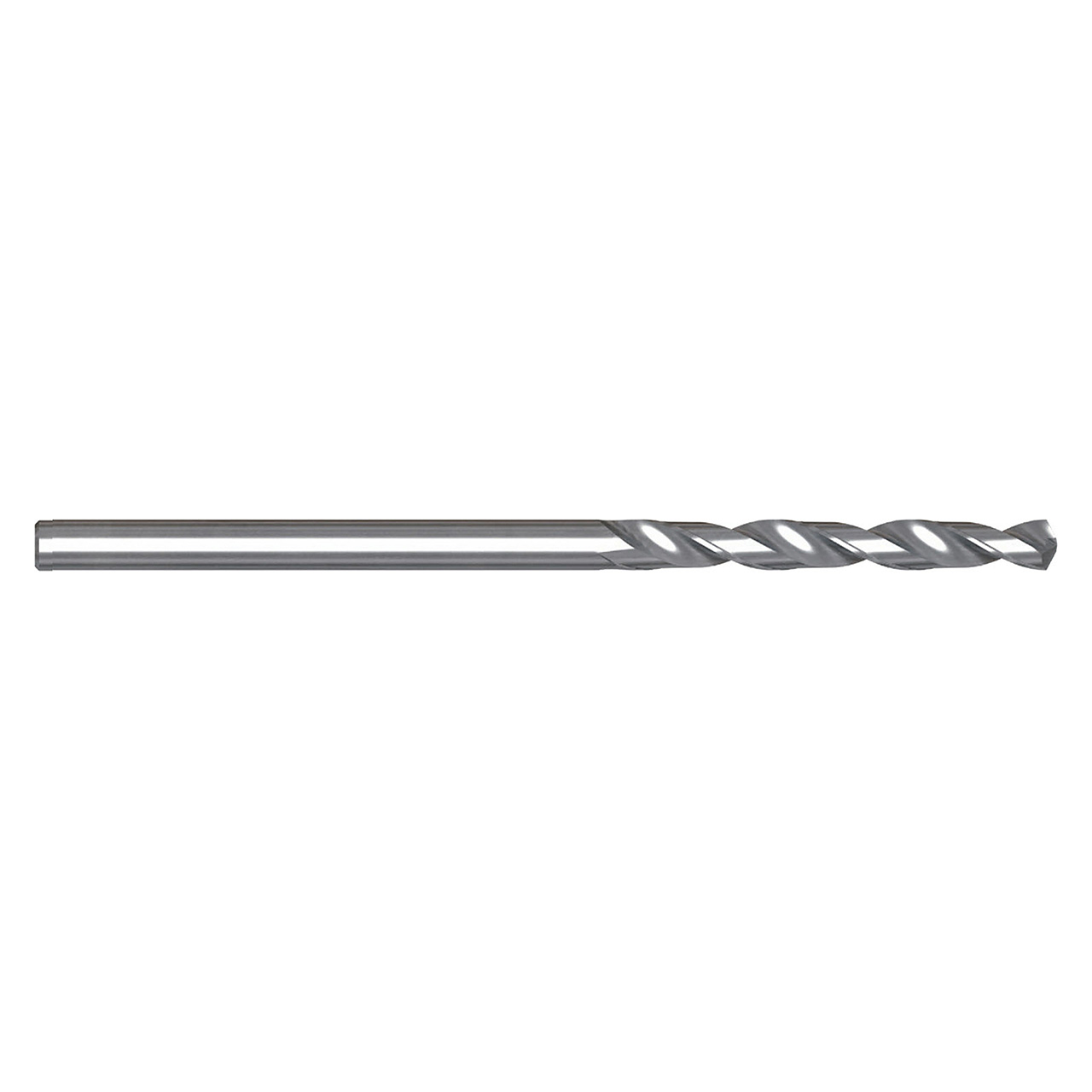

YG1 UDR5A2AB0400 | 0.1575" Diameter x 0.2362" Shank x 2.9134" OAL 2 Flute Micron Grain Carbide Jobber Length Drill Bit

$40.31
Brand:
YG1
Drill Bit Size (Inch):
3/19"
Drill Bit Size (Decimal Inch):
0.1575"
Drill Bit Size (mm):
4.00mm
Drill Point Angle:
125 Degree
Material:
Micron Grain Carbide
Shank Type:
Plain
SKU:
10216686
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Special geometry for dry or MQL drilling of CFRP/AL stacks YG-1 special CVD coating.

Features:


Product Specifications
Manufacturer Part NumberUDR5A2AB0400
Drill Diameter (Inch)3/19"
Drill Diameter (Decimal Inch)0.1575"
Drill Diameter (mm)4.00mm
Shank Diameter (Inch)13/55"
Shank Diameter (Decimal Inch)0.2362"
Shank Diameter (mm)6.00mm
Flute Length (Inch)1-5/12"
Flute Length (Decimal Inch)1.4173"
Flute Length (mm)36.00mm
Overall Length (Inch)2-21/23"
Overall Length (Decimal Inch)2.9134"
Overall Length (mm)74.00mm
Number of Flutes2
SeriesUDR5A2AB
Point Angle125 Degree
Shank TypePlain
ApplicationCFRP/AL/CFRP
MachineCNC Ganty, Robot End-Effectors
OperationDrilling

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Drill Bit Size (Inch):
3/19"
Drill Bit Size (Decimal Inch):
0.1575"
Drill Bit Size (mm):
4.00mm
Drill Point Angle:
125 Degree
Material:
Micron Grain Carbide
Shank Type:
Plain
interval quantity:
1
