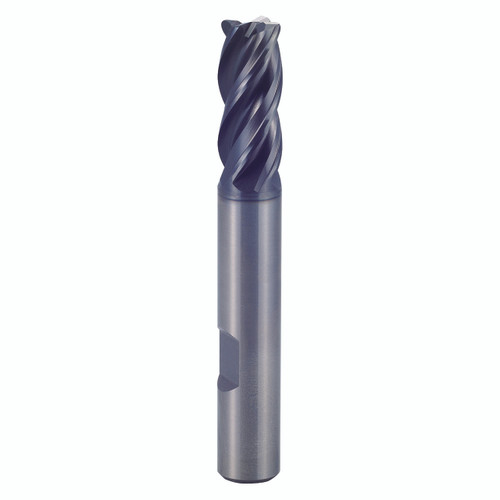

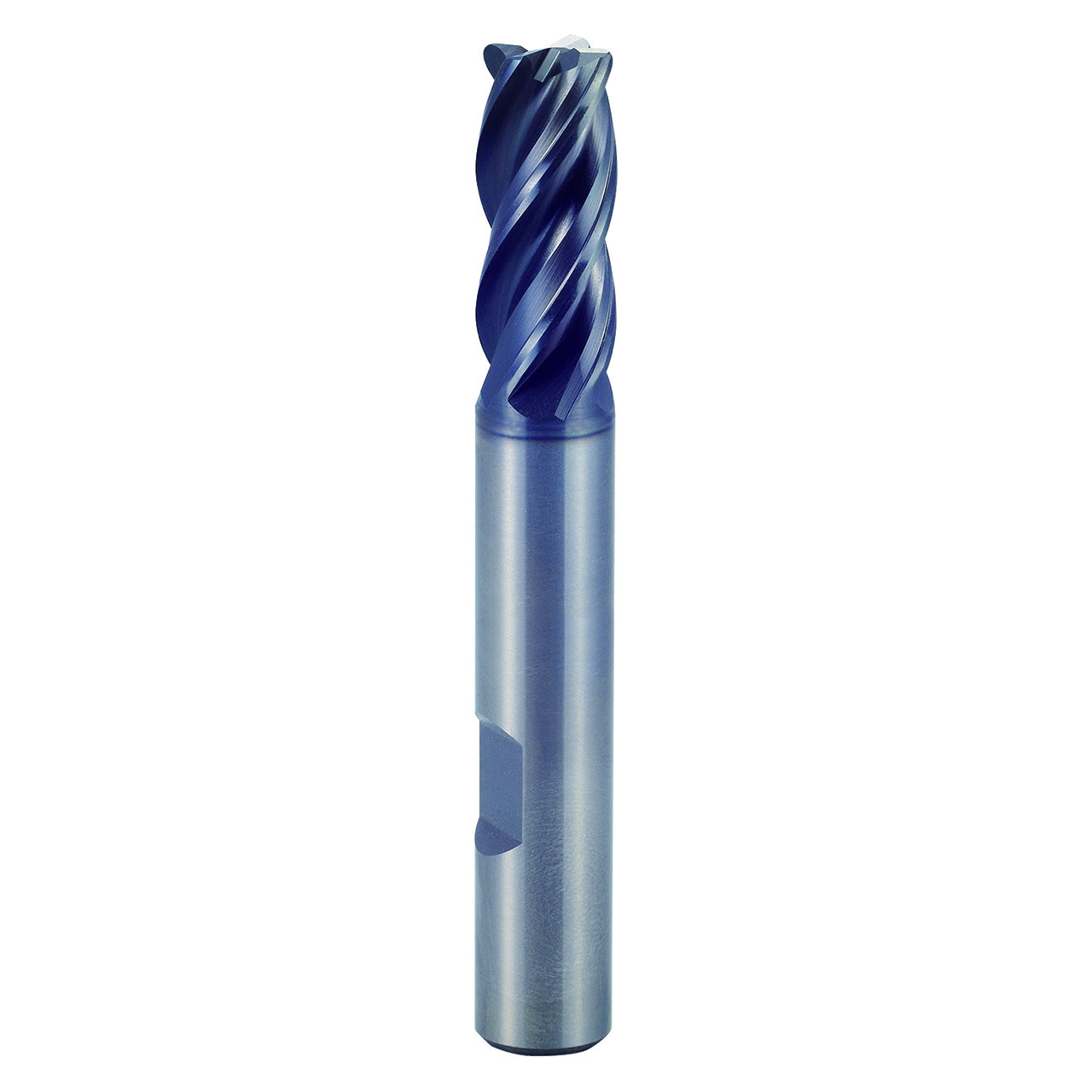

YG1 UGMF71918 | 0.4375" Diameter x 0.4375" Shank x 0.6250" LOC x 2.5000" OAL x 0.0300" Radius 4 Flute Y-Coated Carbide Corner Radius End Mill

$46.10
SKU:
25053979
Weight:
0.19 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberUGMF71918
Diameter (Inch)7/16"
Diameter (Decimal Inch)0.4375"
Diameter (mm)11.11mm
Shank Diameter (Inch)7/16"
Shank Diameter (Decimal Inch)0.4375"
Shank Diameter (mm)11.11mm
Length of Cut (Inch)5/8"
Length of Cut (Decimal Inch)0.6250"
Length of Cut (mm)15.88mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Corner Radius (Inch)2/67"
Corner Radius (Decimal Inch)0.0300"
Corner Radius (mm)0.76mm
Number of Flutes4
Helix AngleVariable
SeriesUGMF71
Shank StyleFlat
CoatingY-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight
Length TypeStandard Length
ApplicationP, M, K, S
