Product Specifications

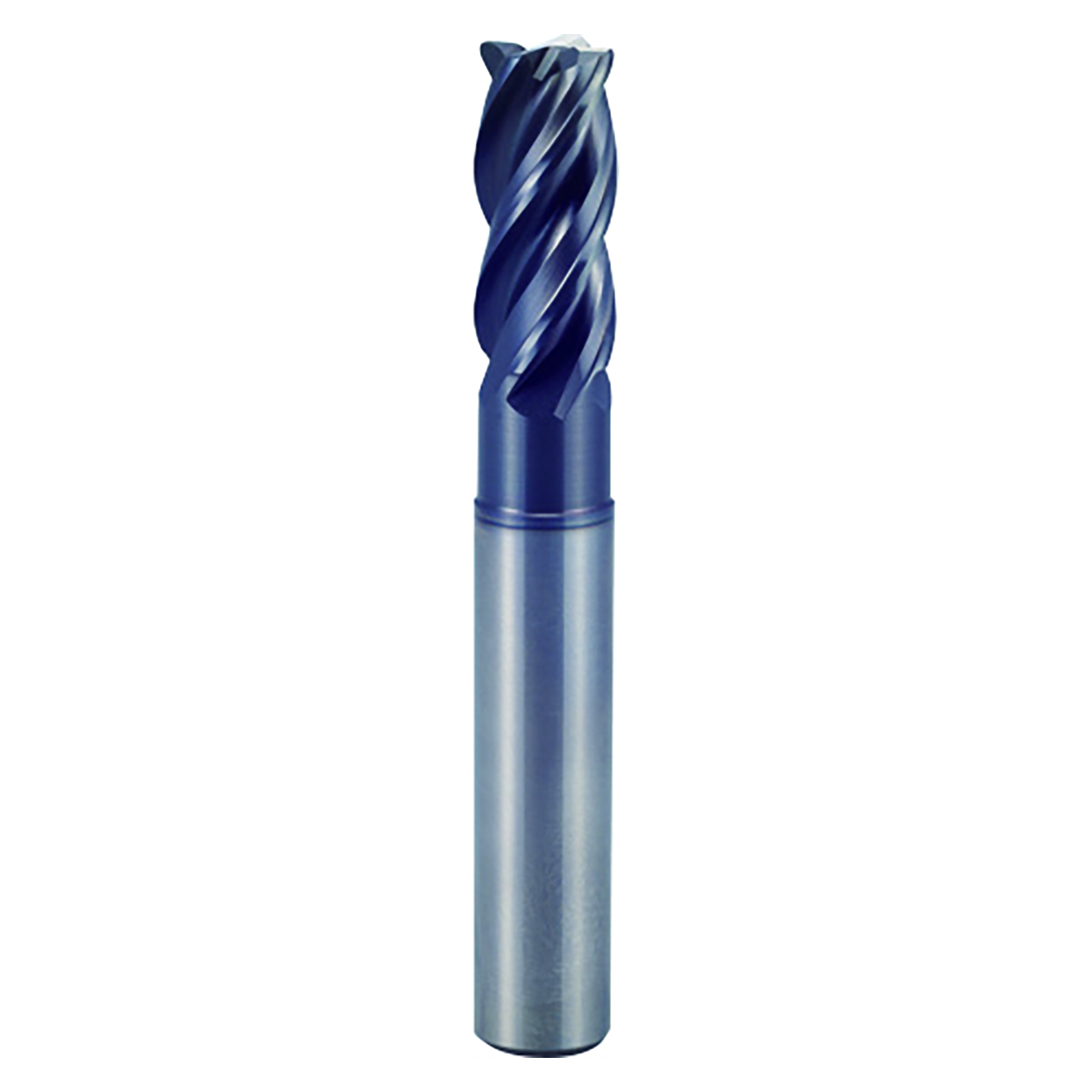

| Manufacturer Part Number | UGMF74996 |
| Diameter (Inch) | 1" |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (Decimal Inch) | 1.1250" |
| Length of Cut (mm) | 28.58mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Corner Radius (Inch) | 15/79" |
| Corner Radius (Decimal Inch) | 0.1900" |
| Corner Radius (mm) | 4.83mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMF74 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Extended Length |
| Application | P, M, K, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
4
Corner Radius (Inch):
15/79"
Corner Radius (Decimal Inch):
0.1900"
Corner Radius (mm):
4.83mm
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Y-Coated
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Cutting Direction:
Right
