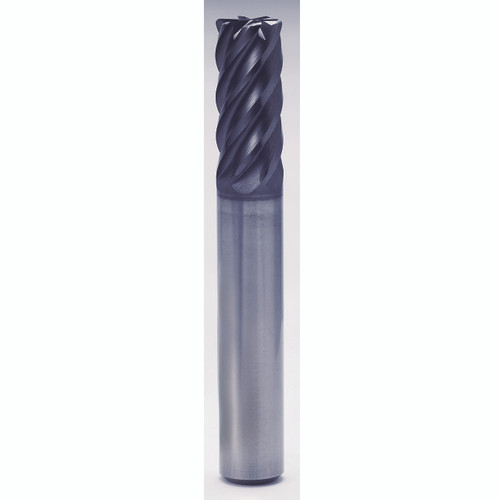

Product Specifications
| Manufacturer Part Number | UGMG22064 |
| Diameter (Inch) | 1" |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Corner Radius (Inch) | 2/67" |
| Corner Radius (Decimal Inch) | 0.0300" |
| Corner Radius (mm) | 0.76mm |
| Number of Flutes | 6 |
| Helix Angle | Variable |
| Series | UGMG22 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, S |
