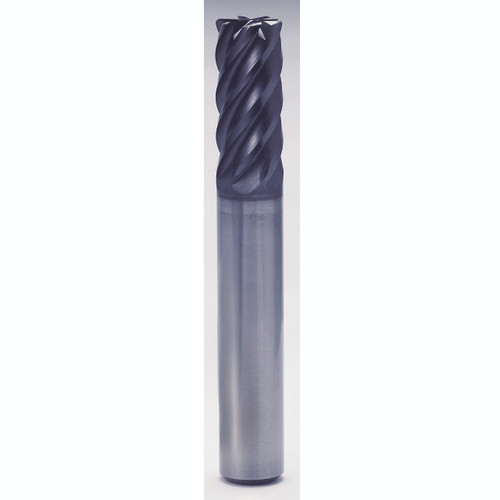

YG1 UGMG22947 | 0.7500" Diameter x 0.7500" Shank x 3.0000" LOC x 5.5000" OAL x 0.0900" Radius 6 Flute Y-Coated Carbide Corner Radius End Mill

$309.59
SKU:
25054220
Weight:
1.13 LBS
Shipping:
Free Shipping

Product Specifications
Manufacturer Part NumberUGMG22947
Diameter (Inch)3/4"
Diameter (Decimal Inch)0.7500"
Diameter (mm)19.05mm
Shank Diameter (Inch)3/4"
Shank Diameter (Decimal Inch)0.7500"
Shank Diameter (mm)19.05mm
Length of Cut (Inch)3"
Length of Cut (Decimal Inch)3.0000"
Length of Cut (mm)76.20mm
Overall Length (Inch)5-1/2"
Overall Length (Decimal Inch)5.5000"
Overall Length (mm)139.70mm
Corner Radius (Inch)1/11"
Corner Radius (Decimal Inch)0.0900"
Corner Radius (mm)2.29mm
Number of Flutes6
Helix AngleVariable
SeriesUGMG22
Shank StylePlain
CoatingY-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight
Length TypeStandard Length
ApplicationP, M, S
