Product Specifications

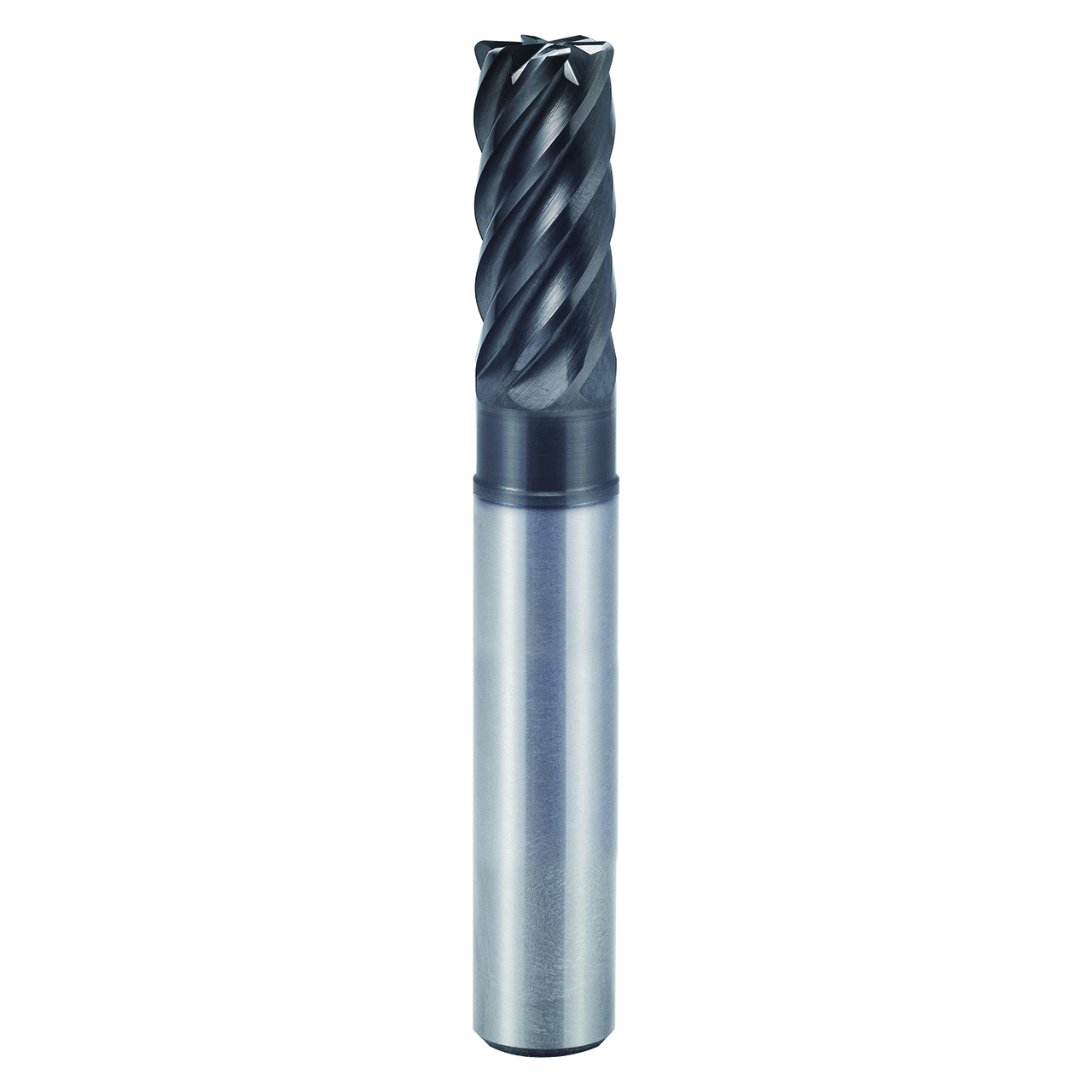

| Manufacturer Part Number | UGMH09976 |
| Diameter (Inch) | 1" |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (Decimal Inch) | 1.2500" |
| Length of Cut (mm) | 31.75mm |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.0000" |
| Overall Length (mm) | 127.00mm |
| Corner Radius (Inch) | 3/50" |
| Corner Radius (Decimal Inch) | 0.0600" |
| Corner Radius (mm) | 1.52mm |
| Number of Flutes | 6 |
| Helix Angle | Variable |
| Series | UGMH09 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Extended Length |
| Application | P, M, S |
