Product Specifications

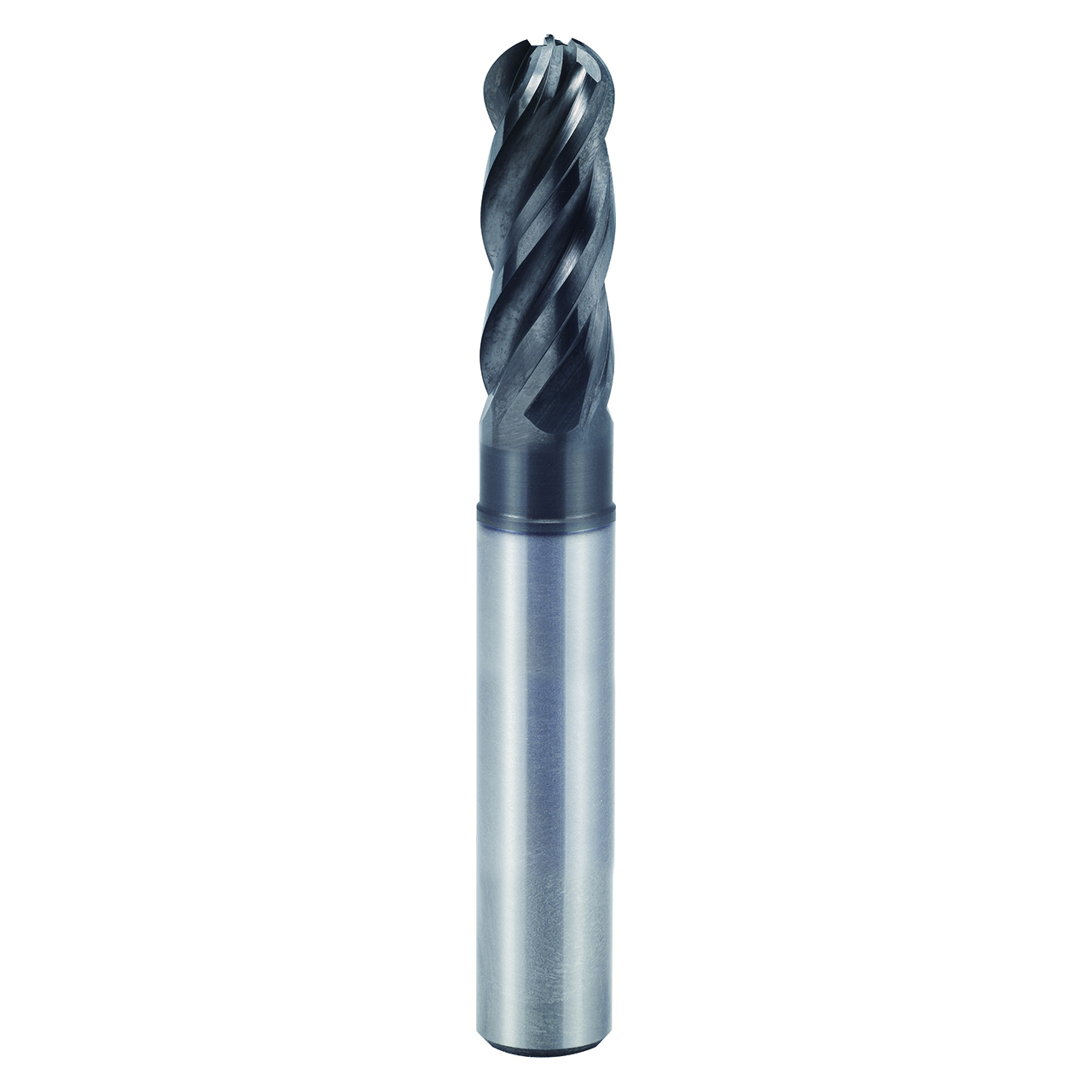

| Manufacturer Part Number | UGMH10903 |
| Diameter (Inch) | 3/16" |
| Diameter (Decimal Inch) | 0.1875" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Inch) | 7/32" |
| Length of Cut (Decimal Inch) | 0.2188" |
| Length of Cut (mm) | 5.56mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Ball Nose Radius (Inch) | 3/32" |
| Ball Nose Radius (Decimal Inch) | 0.0938" |
| Ball Nose Radius (mm) | 2.38mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMH10 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Extended Length |
| Application | P, M, K, S |
