| Manufacturer Part Number | VC044 |
| Body Diameter 1 (Decimal Inch) | 1.2992" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Decimal Inch) | 1.6535" |
| Body Diameter 2 (mm) | 42.00mm |
| Connection Work Side (Decimal Inch) | 0.750" |
| Connect Work Side (mm) | 19.05mm |
| Gage Length (Decimal Inch) | 6.300" |
| LPR (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 10.2992" |
| Overall Length (mm) | 261.60mm |
| Body Length (Decimal Inch) | 5.5492" |
| Body Length (mm) | 140.95mm |
| Clamping Length (Decimal Inch) | 1.6535" |
| Clamping Length (mm) | 42.00mm |
| Connection Bore Depth (Decimal Inch) | 2.1660" |
| Connection Bore Depth (mm) | 54.00mm |
| Thread Diameter Size | M16x1.00mm |
| Connection Retention Knob Thread Size | UNC1-8 |
| Radial Location (mm) | 17.65mm |
| Radial Location (Decimal Inch) | 0.6949" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

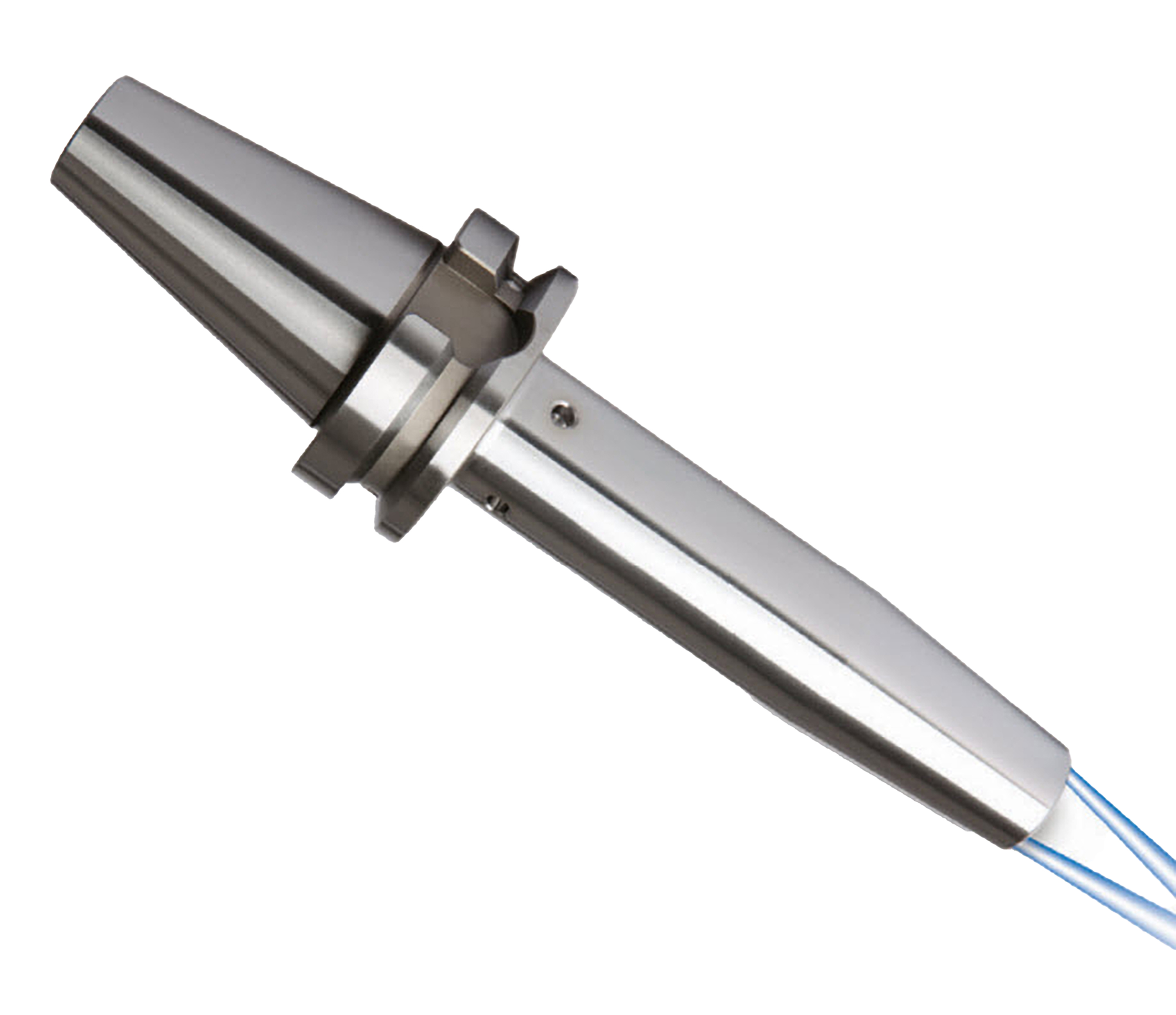

| Product Type | Shrink Fit Holder |
