Product Specifications
| Manufacturer Part Number | VD020 |
| Body Diameter 1 (Inch) | 37/94" |
| Body Diameter 1 (Decimal Inch) | 0.3937" |
| Body Diameter 1 (mm) | 10.00mm |
| Body Diameter 2 (Inch) | 17/27" |
| Body Diameter 2 (Decimal Inch) | 0.6299" |
| Body Diameter 2 (mm) | 16.00mm |
| Connection Work Side (Decimal Inch) | 0.125" |
| Connection Work Side (Inch) | 1/8" |
| Connect Work Side (mm) | 3.18mm |
| Gage Length (Decimal Inch) | 2.360" |
| LPR (Inch) | 2-25/69" |
| LPR (mm) | 6.00mm |
| Overall Length (Inch) | 4-15/56" |
| Overall Length (Decimal Inch) | 4.2677" |
| Overall Length (mm) | 108.40mm |
| Body Length (Inch) | 1-1/2" |
| Body Length (Decimal Inch) | 1.4961" |
| Body Length (mm) | 38.00mm |
| Clamping Length (Inch) | 28/79" |
| Clamping Length (Decimal Inch) | 0.3543" |
| Clamping Length (mm) | 9.00mm |
| Connection Retention Knob Thread Size | M12x1.75 |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

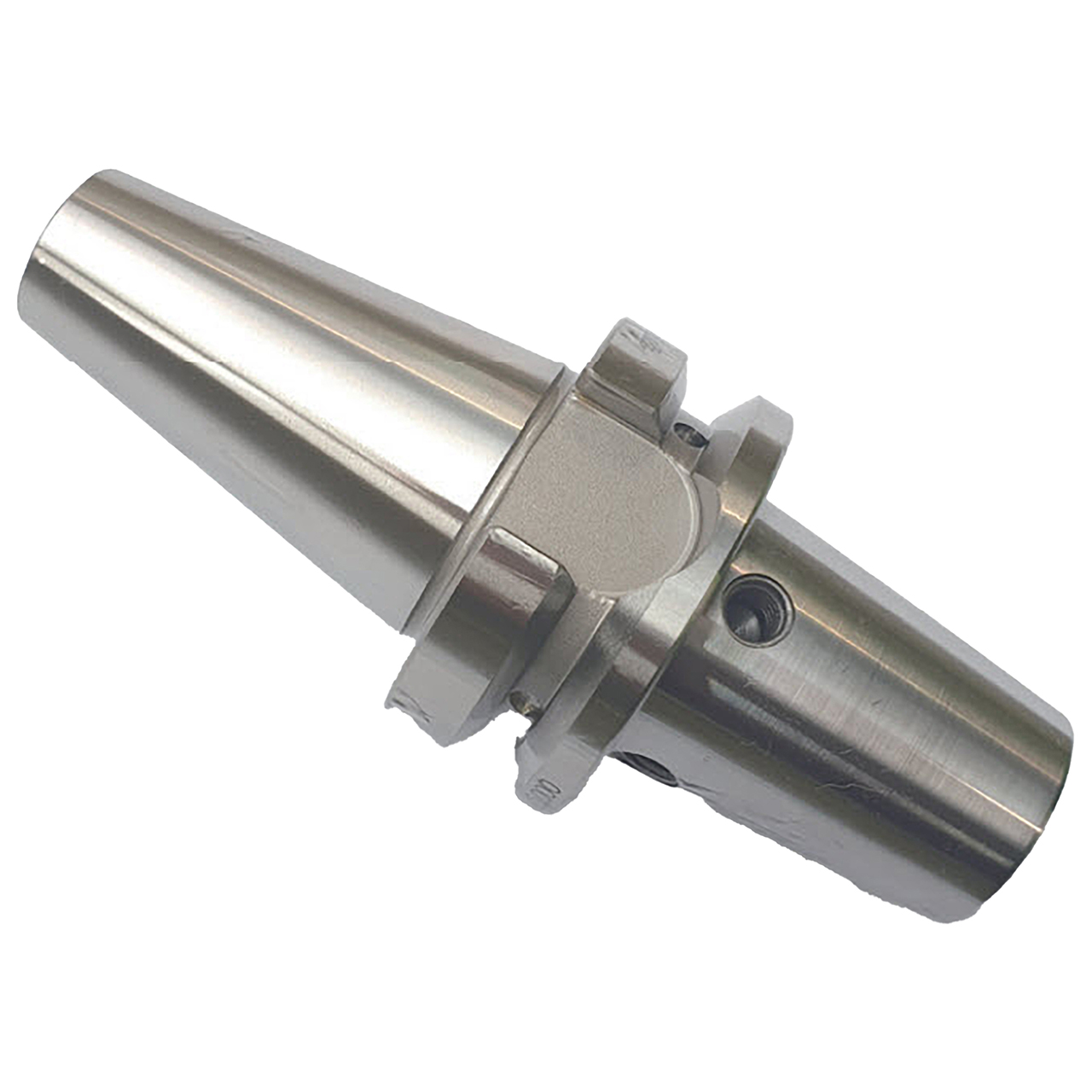

| Product Type | Shrink Fit Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
