| Manufacturer Part Number | VH046 |
| Taper Type | BT40 |
| Connection Diameter Work Side (Decimal Inch) | 1" |
| Connection Diameter Work Side (Decimal Inch) | 1.000" |
| Connection Diameter Work Side (mm) | 25.40mm |
| Body Diameter1 (Decimal Inch) | 1.732" |
| Body Diameter1 (mm) | 44.00mm |
| Body Diameter2 (Decimal Inch) | 2.087" |
| Body Diameter2 (mm) | 53.00mm |
| Projection Length (Decimal Inch) | 6.300" |
| Projection Length (mm) | 160.00mm |
| Functional Length (Decimal Inch) | 4.016" - 4.409" |
| Overall Length (Decimal Inch) | 8.874" |
| Overall Length (mm) | 225.40mm |
| Body Length (Decimal Inch) | 5.236" |
| Body Length (mm) | 133.00mm |
| Clamping Length (Decimal Inch) | 2.283" |
| Clamping Length (mm) | 58.00mm |
| Connection Bore Depth (Decimal Inch) | 2.362" |
| Connection Bore Depth (mm) | 60.00mm |
| Thread diameter size | M16 x 1.00mm |
| Body Half Taper Angle (Degree) | 4.50 Degree |
| Radial Location (Decimal Inch) | 0.896" |
| Radial Location (mm) | 22.75mm |
| Connection Retention Knob Thread Size | M16x2.0 |
| Measurement | Inch |
| Taper Accuracy | AT3 |
| Maximum Speed (RPM) | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Spindle Taper Type | JIS B6339/MAS 403BT |

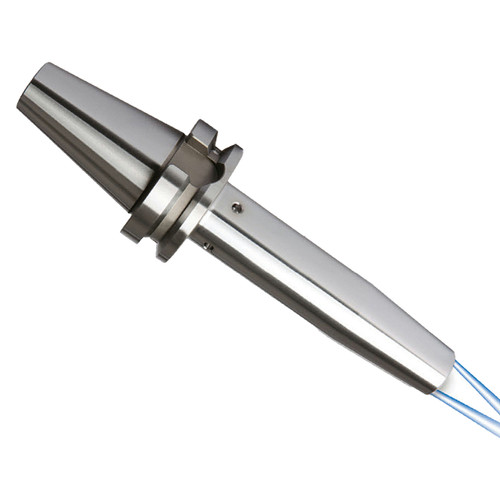

| Product Type | Shrink-Fit Tool Holder |
