Product Specifications
| Manufacturer Part Number | VQ026J |
| Body Diameter 1 (Inch) | 43/52" |
| Body Diameter 1 (Decimal Inch) | 0.8270" |
| Body Diameter 1 (mm) | 21.00mm |
| Body Diameter 2 (Inch) | 1-1/16" |
| Body Diameter 2 (Decimal Inch) | 1.0630" |
| Body Diameter 2 (mm) | 27.00mm |
| Connection Work Side (Decimal Inch) | 0.250" |
| Connection Work Side (Inch) | 1/4" |
| Connect Work Side (mm) | 6.35mm |
| Gage Length (Decimal Inch) | 6.300" |
| LPR (Inch) | 6-3/10" |
| LPR (mm) | 16.00mm |
| Overall Length (Inch) | 7-52/93" |
| Overall Length (Decimal Inch) | 7.5591" |
| Overall Length (mm) | 192.00mm |
| Body Length (Inch) | 5-8/29" |
| Body Length (Decimal Inch) | 5.2756" |
| Body Length (mm) | 134.00mm |
| Clamping Length (Inch) | 1-2/85" |
| Clamping Length (Decimal Inch) | 1.0236" |
| Clamping Length (mm) | 26.00mm |
| Connection Bore Depth (Inch) | 1-5/12" |
| Connection Bore Depth (Decimal Inch) | 1.4773" |
| Connection Bore Depth (mm) | 36.00mm |
| Thread Diameter Size | M5x0.80mm |
| Radial Loction (Inch) | 8/19" |
| Radial Location (mm) | 10.70mm |
| Radial Location (Decimal Inch) | 0.4213" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

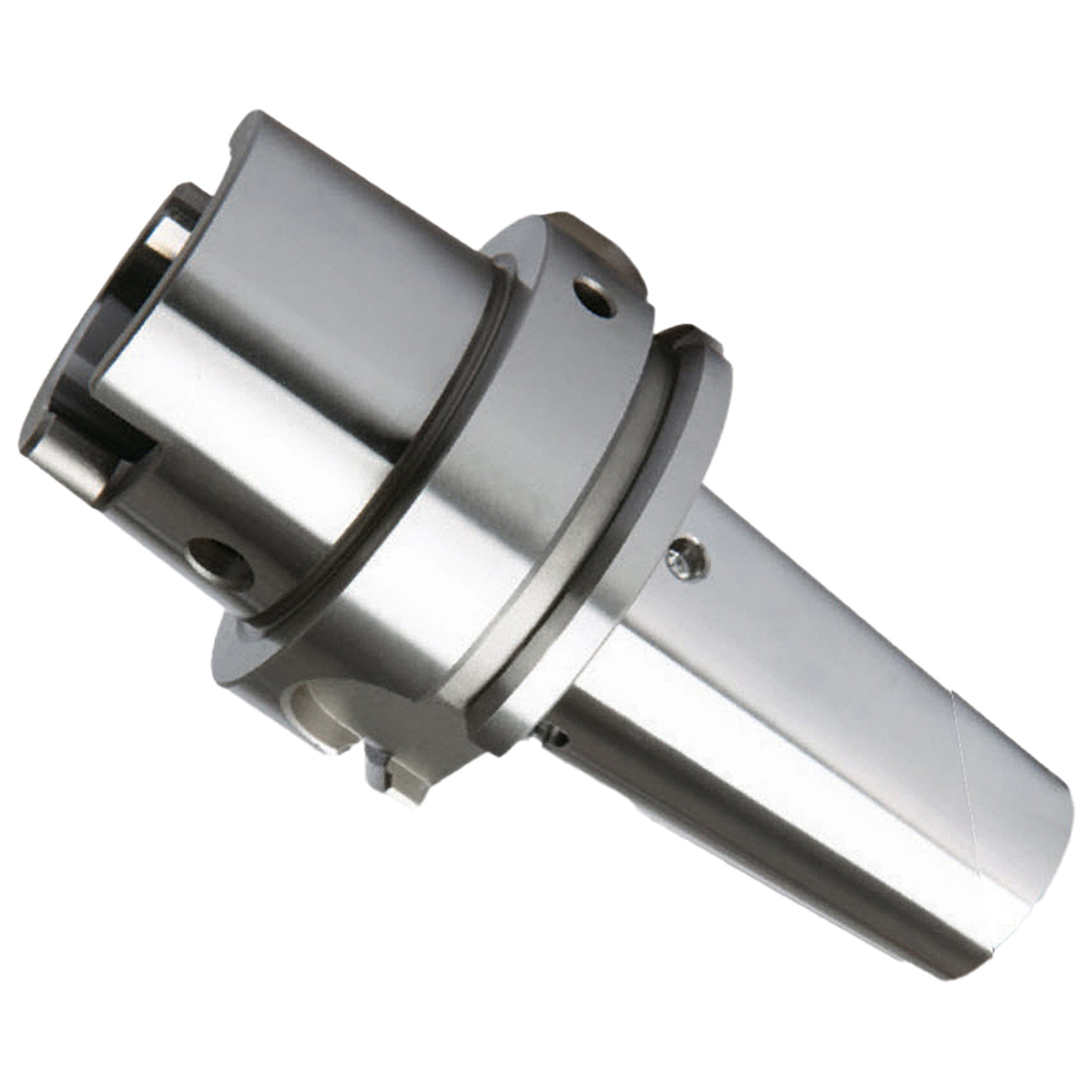

| Product Type | Shrink Fit Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Inch):
7-52/93"
Overall Length (Decimal Inch):
7.5591"
Overall Length (mm):
192.00mm
