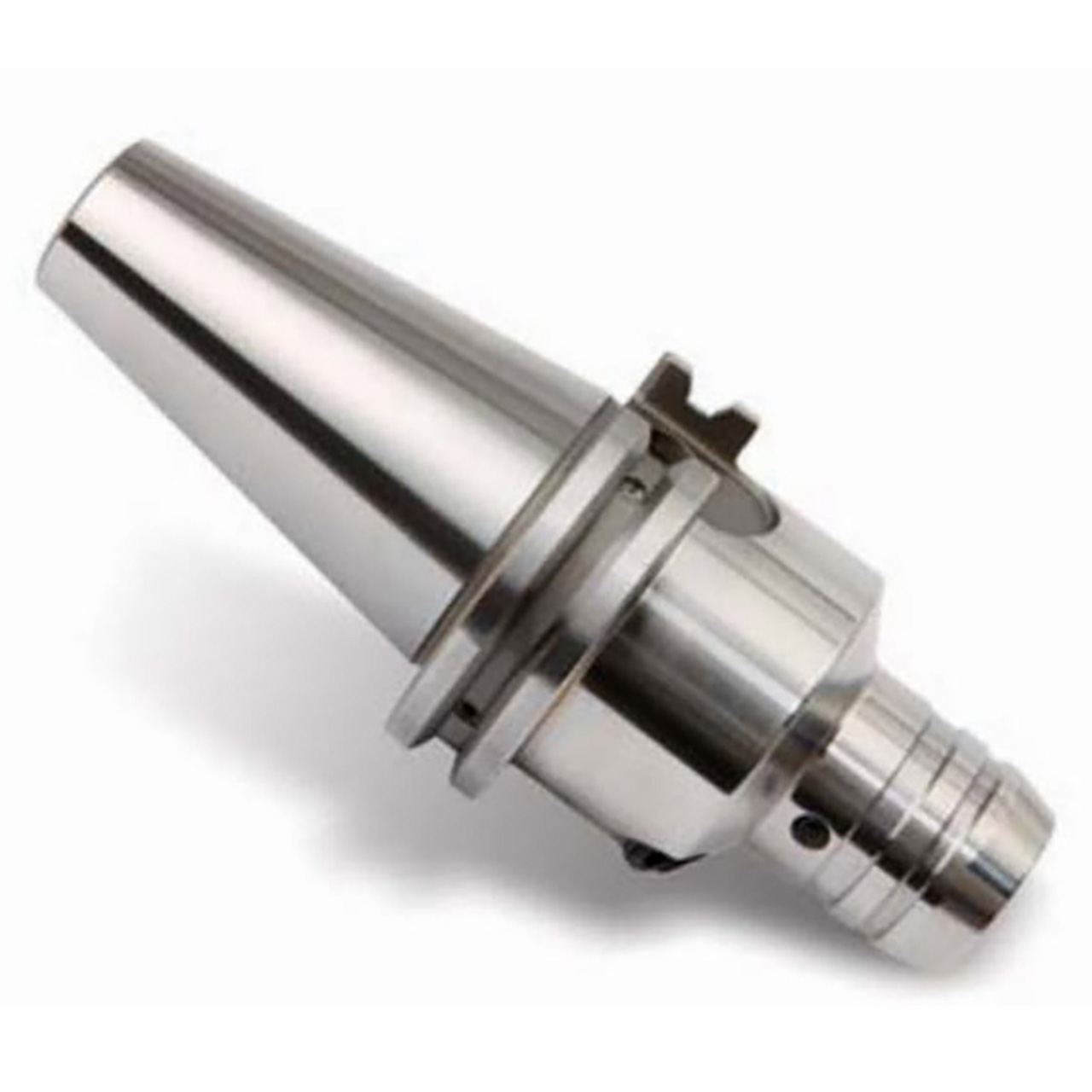

Product Specifications
| EDP Number | WC024 |
| Shoulder Diameter (Inch) | 2" |
| Shoulder Diameter (mm) | 50.01mm |
| Shoulder Diameter (Decimal Inch) | 1.969" |
| Bore Diameter (Inch) | 3/8" |
| Bore Diameter (mm) | 9.53mm |
| Nose Diameter (mm) | 30mm |
| Bore Diameter (Decimal Inch) | 0.375" |
| Nose Diameter (Inch) | 1-3/16" |
| Nose Diameter (Decimal Inch) | 1.181" |
| Gage Length (Decimal Inch) | 3.543" |
| Gage Length (Inch) | 3-9/16" |
| Gage Length (mm) | 89.99mm |
| Bore Depth (Decimal Inch) | 1.26" |
| Bore Depth (Inch) | 1-1/4" |
| Bore Depth (mm) | 32.004 |
| Maximum Tool Depth inch (l2) | 1.26" |
| Maximum Tool Depth fraction (l2) | 1-1/4" |
| Maximum Tool Depth metric (L2) | 32mm |
| Grade | M8x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT50 |
