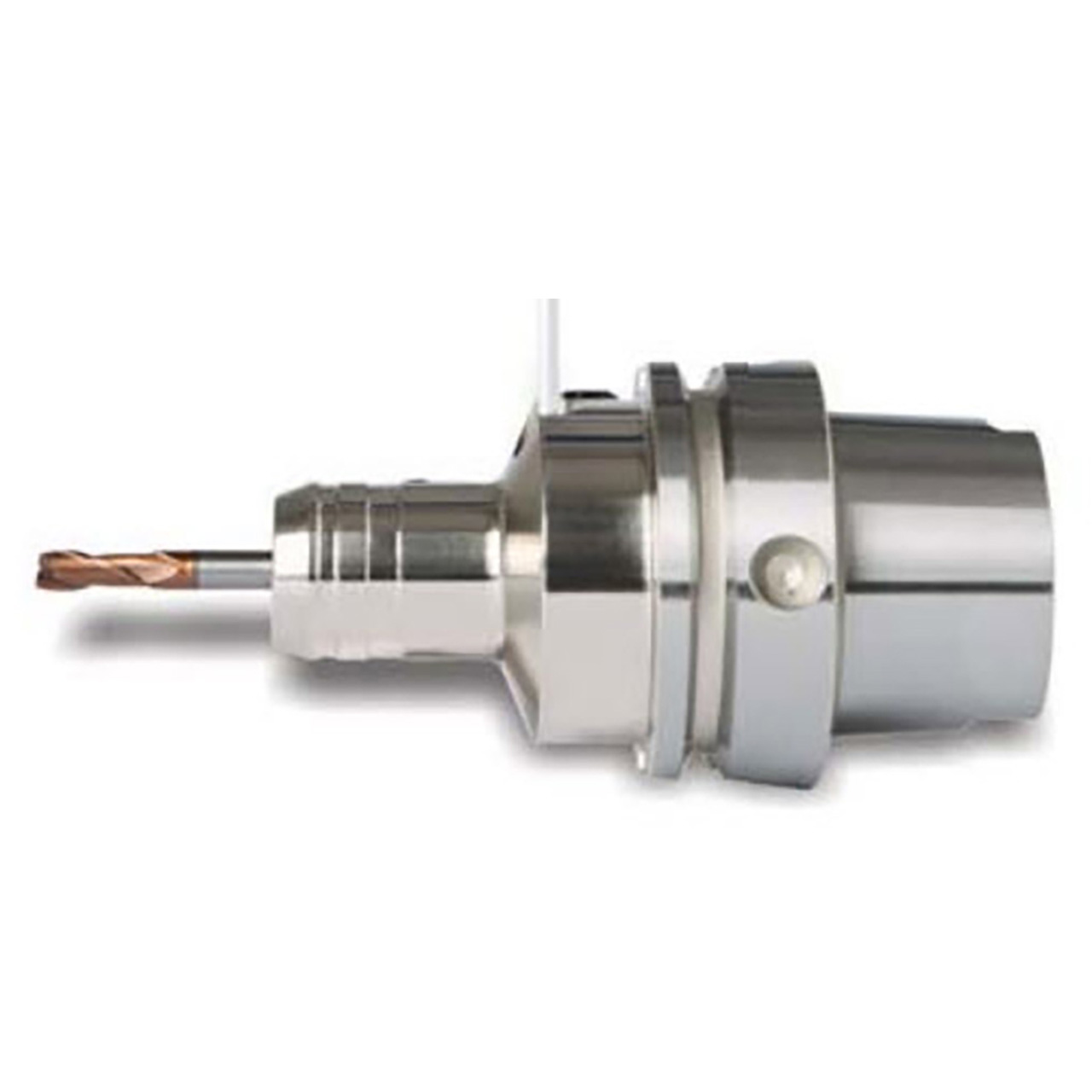

Product Specifications
| EDP Number | WQ116HCR |
| Shoulder Diameter (Inch) | 2-15/16" |
| Shoulder Diameter (mm) | 63mm |
| Shoulder Diameter (Decimal Inch) | 2.4803" |
| Bore Diameter (Inch) | 1" |
| Bore Diameter (mm) | 25mm |
| Nose Diameter (mm) | 57mm |
| Bore Diameter (Decimal Inch) | 0.9843" |
| Nose Diameter (Inch) | 2-1/4" |
| Nose Diameter (Decimal Inch) | 2.2441" |
| Gage Length (Decimal Inch) | 4.7244" |
| Gage Length (Inch) | 4-3/4" |
| Gage Length (mm) | 120mm |
| Bore Depth (Decimal Inch) | 2.1457" |
| Bore Depth (Inch) | 2-1/8" |
| Bore Depth (mm) | 54.5 |
| Maximum Tool Depth inch (l2) | 1.8898" |
| Maximum Tool Depth fraction (l2) | 1-7/8" |
| Maximum Tool Depth metric (L2) | 48mm |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD |
| Taper # | HSK63A |
