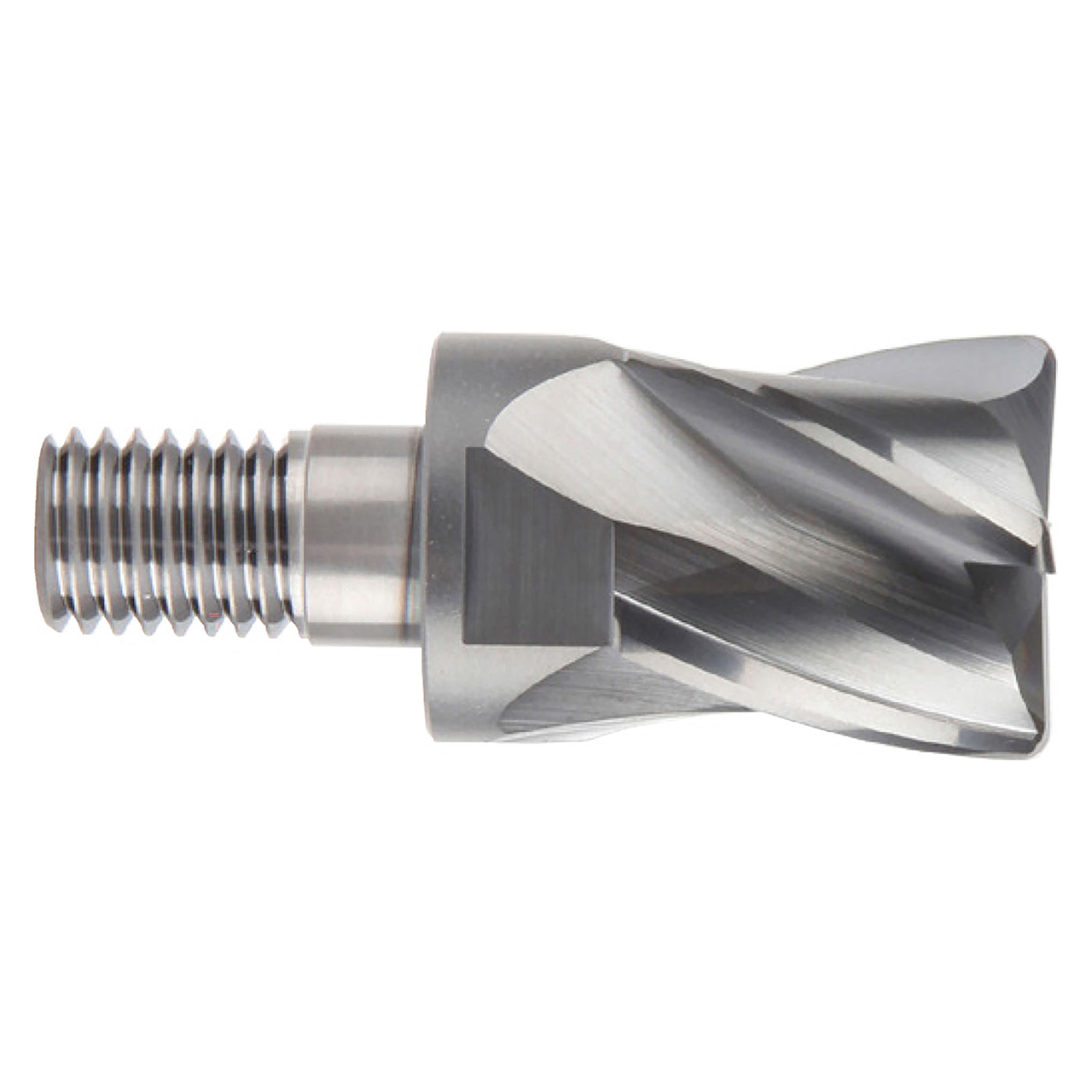

| Manufacturer Part Number | XGMF20048030 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Neck Diameter (Decimal Inch) | 0.7110" |
| Neck Diameter (Inch) | 32/45" |
| Neck Diameter (mm) | 18.06mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Length Below Shank (Decimal Inch) | 1.1440" |
| Length Below Shank (Inch) | 1-1/7" |
| Length Below Shank (mm) | 29.06mm |
| Coupling Diameter (Decimal Inch) | 0.4130" |
| Coupling (Inch) | 19/46" |
| Coupling (mm) | 10.49mm |
| Wrench Width (Decimal Inch) | 0.6690" |
| Wrench Width (Inch) | 2/3" |
| Wrench Width (mm) | 16.99mm |
| Corner Radius (Decimal Inch) | 0.0300" |
| Corner Radius (Inch) | 2/67" |
| Corner Radius (mm) | 0.76mm |
| Number of Flutes | 4 |
| Series | XGMF20 |
| Thread | M10 |
| Wrench Code | SPIS1700 |
| Helix Angle (Degree) | 27 Degree/30 Degree |
| Material | Carbide |
| Application | P |
| Cutting Direction | Right Hand |
| Cut Type | Center Cut |
| Type | Corner Radius |
| Product Type | Corner Radius End Mill Head |
